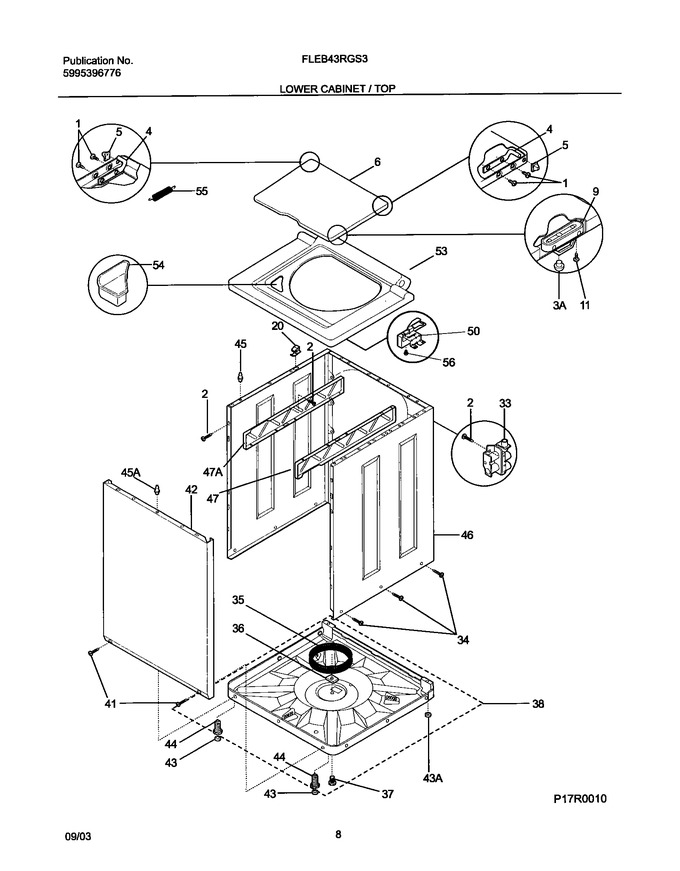

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	134203900		Screw,hinge Mtg ,6-32 X 0.3125 ,pph 45deg Hdrpt   (Replaces: 131587500)				$ 10.85
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	5304489657		Hinge Bar   (Replaces: 3205250)				$ 82.93
5	5303208743		Grommet,hinge				$ 5.63
6	5303212872		Lid,washer ,white			Immediately	$ 345.16
9	131390000		Lid Strike				$ 55.19
11	3204368		Screw,lid Strike Mtg ,6-20b X 0.375				$ 13.01
20	3204374		Pin,slide ,side To Top				$ 78.67
34	131205500		Screw,cab Body ,1/4-14 X 0.625 ,side-to-base				$ 13.46
35	5308002385		Snubber Ring				$ 54.86
36	3204380		Shipping Block				$ 12.29
37	131658900		Screw,shipping ,1/4-20 X 1.001 ,yellow ,unit Base,thread Forming				$ 6.77
38	5303311213		Base Assembly				$ 374.69
41	131302800		Screw,10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 26.58
42	131104303		Panel - Front - White				$ 309.70
43	131422100		Pad,leveling Leg ,front				$ 17.59
44	134548800		Screw,leveling Leg ,with Pad   (Replaces: 5303309673)			Immediately	$ 30.20
45	131346400		Pin,panel Locator ,side				$ 12.44
46	134046600		Cabinet Assy,white ,back And Sides				$ 383.99
47	131106701		Bracket-marriage-rh		Appelez-nous	-
53	131452510		Panel,washer Top ,white		Appelez-nous	-
54	3204394		Dispenser-bleach				$ 59.96
55	134890500		Spring,lid Assist   (Replaces: 5303212876)				$ 19.85
56	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
3A	134075500		Bumper,lid ,front				$ 17.35
43A	131422200		Pad,self Lvlg Leg ,rear			Immediately	$ 56.70
45A	131346401		Pin,panel Locator ,front			Immediately	$ 16.63
47A	131091001		Bracket-marriage-lh		Appelez-nous	-
F33	131900200		Valve,water ,115 V				$ 166.26
F50	ES1800		Lock,lid ,w/ext Switch   (Replaces: 134101800)			Immediately	$ 61.20

    View Diagram in Separate Window       Print Part List
