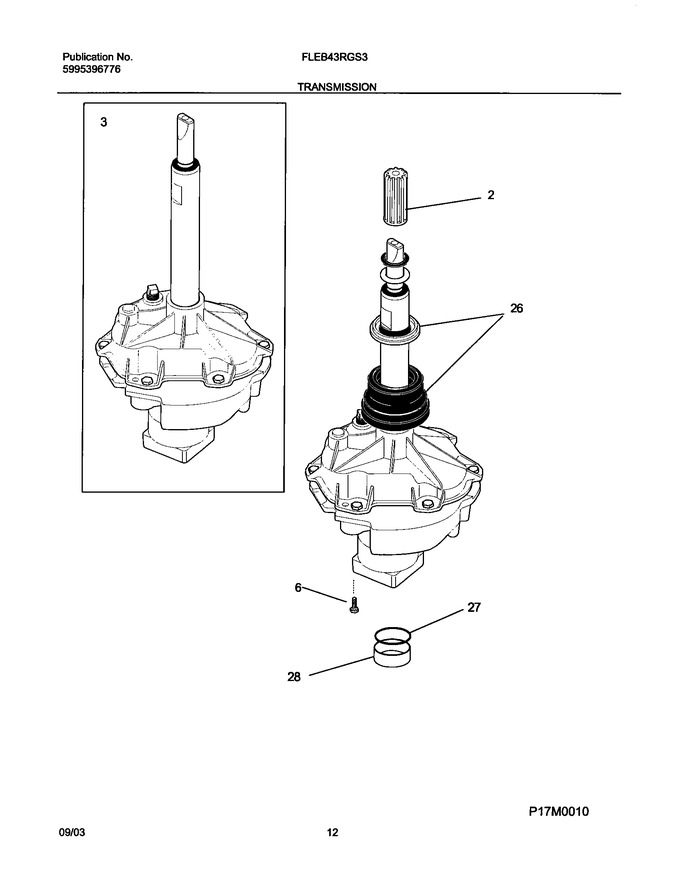

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	134736400		Transmission Assy,h+-helical Gear   (Replaces: 131878401)				$ 875.74
6	134197900		Screw,hex Washer Head ,1/4-20 X 0.437				$ 15.75
27	131784300		Washer,bearing Block ,transmission		Appelez-nous	-
28	131784400		Spacer,bearing Block ,transmission				$ 48.58
F2	131475100		Hub,drive ,agitator		Appelez-nous	-
F26	5303279394		Seal Assy,tub ,transmission				$ 85.72
NI	131933500		Energy Guide		Appelez-nous	-
