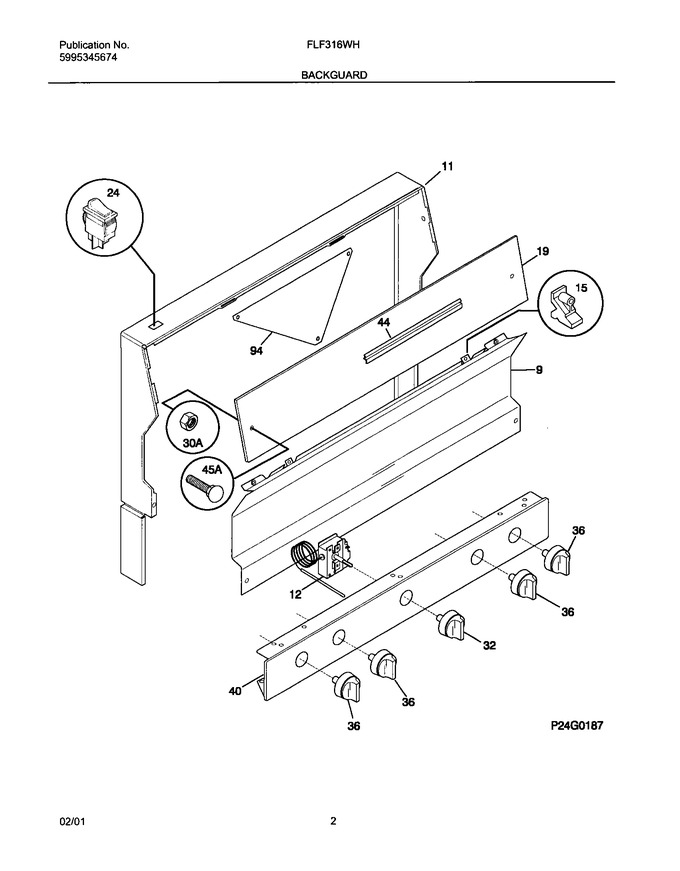

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	316133502		Trim,splasher ,almond ,lower		Appelez-nous	-
11	316057008		Trim,wrapper ,almond		Appelez-nous	-
15	5303131237		Support-backguard,(2)		Appelez-nous	-
19	316034132		Panel,control ,almond		Appelez-nous	-
32	316102315		Knob-thermostat,white		Appelez-nous	-
36	316102316		Knob,top Valve ,almond ,(4)		Appelez-nous	-
40	316086864		Panel-manifold,almond		Appelez-nous	-
44	3131468		Bracket, Backguard		Appelez-nous	-
94	316111300		Stiffener,backguard		Appelez-nous	-
30A	316064300		Nut,nylon		Appelez-nous	-
45A	316056904		Bolt,fastener ,nylon ,almond ,(2)		Appelez-nous	-
F12	316032411		Thermostat   (Replaces: 316032404)			Immediately	$ 165.14
F24	316118102		Switch-oven Light,rocker ,almond		Appelez-nous	-
NI	316021109		Screw,8-18 X 0.500 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316097602		Insulator		Appelez-nous	-
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black,back/bodyside   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome ,hinge,ind Light,manifold Panel   (Replaces: 316021108)				$ 10.02

    View Diagram in Separate Window       Print Part List
