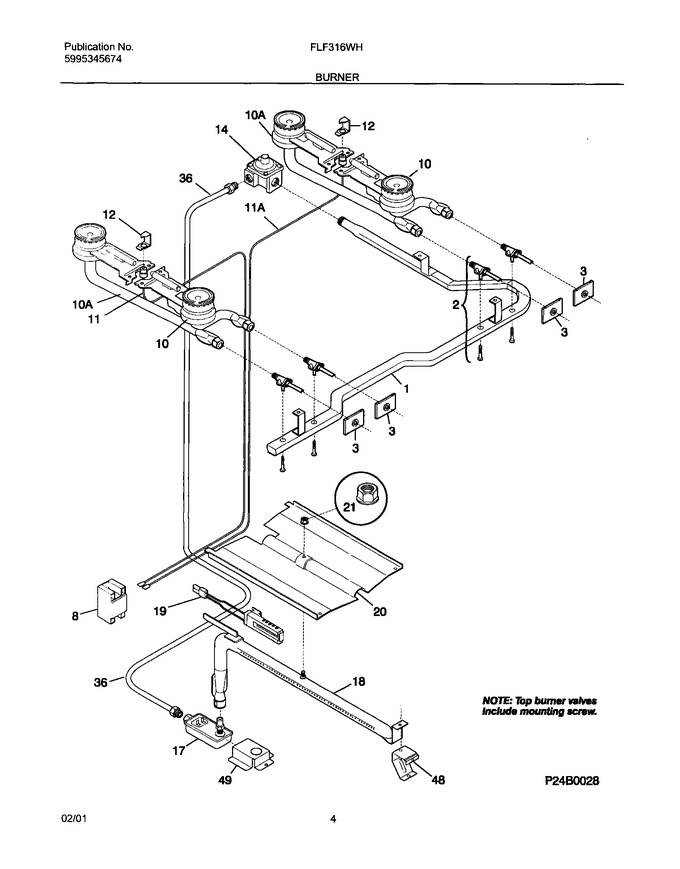

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	316001830		Wiring Harness,w/igntr Switch				$ 230.12
12	3016993		Retainer-ignitor		Appelez-nous	-
20	3203265		Baffle,oven Burner		Appelez-nous	-
21	154079601		Nut,hex Head Sems   (Replaces: 5303013272)				$ 0.41
36	316083000		Tubing, 3/8, Alum				$ 121.49
48	3018603		Bracket,support ,oven Burner		Appelez-nous	-
49	3131438		Bracket, Safety Valve		Appelez-nous	-
F1	316134400		Manifold Pipe		Appelez-nous	-
F10	5304506427		Burner-top,venturi Ring   (Replaces: 316103800)				$ 101.63
F10A	5304506426		Burner-top,venturi Ring   (Replaces: 316103801)				$ 100.05
F11	316081705		Ignitor-top Burner,33``   (Replaces: 316081702)				$ 94.27
F11A	316081705		Ignitor-top Burner   (Replaces: 316081703)				$ 94.27
F14	316082901		Regulator-pressure		Appelez-nous	-
F17	316066400		Valve-safety		Appelez-nous	-
F18	316114300		Burner,oven				$ 169.88
F19	5304509706		Ignitor-oven   (Replaces: 316119301)			Immediately	$ 189.59
F2	316134201		Valve-top Burner,lp Gas ,2 Position ,(4)		Appelez-nous	-
F8	5304518635		Spark Module   (Replaces: 316135700)				$ 87.21
NI	316134300		Screw,10-24 ,valve Mounting		Appelez-nous	-
NI	316021104		Screw-regulator/brkt,hex ,8-18 X 3/8 ,nick, 3				$ 7.79
NI	5303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.500 ,burner Box			Immediately	$ 13.46
