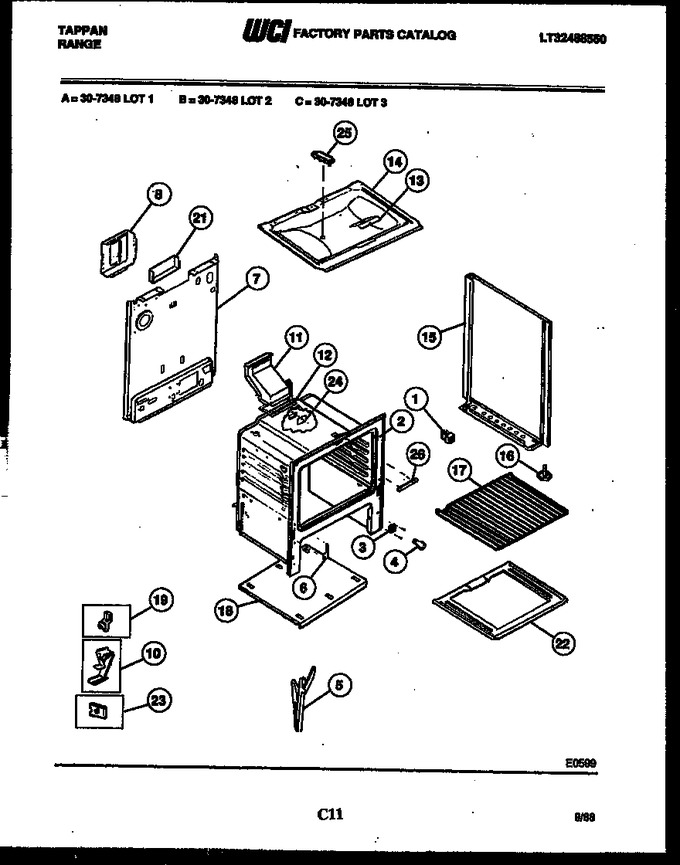

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	665T188P02		Spacer - B/s (8)		Appelez-nous	-
3	662T042P01		Socket-oven Light		Appelez-nous	-
4	374T018P05		Light Bulb		Appelez-nous	-
5	3131569		Channel-dr Hinge (2)		Appelez-nous	-
6	3131570		Cover-hinge Cutout (2)				$ 7.35
7	3131567		Back, Main		Appelez-nous	-
8	3131660		Shield, Rear Wall		Appelez-nous	-
10	145T130P01		Clip - Wire (1)		Appelez-nous	-
11	3131904		Flue		Appelez-nous	-
12	3131355		Gasket-flue (1)		Appelez-nous	-
13	3131101		Cover, Plate		Appelez-nous	-
14	095T030F02-86		Burner Box		Appelez-nous	-
15	3131454		B/s-panel-almond Rh		Appelez-nous	-
16	636M004P01		Screw - Leveling (4)		Appelez-nous	-
17	3131970		Rack - Oven (2)		Appelez-nous	-
18	058T036F02-86		Bottom, Oven		Appelez-nous	-
19	3011805		Clip - Thermostat		Appelez-nous	-
21	3131348		Shield-flue		Appelez-nous	-
22	3131180		Base, Broil		Appelez-nous	-
23	241T017P235		Fastener, Hinge		Appelez-nous	-
24	174T297F01		Cover, Igniter		Appelez-nous	-
25	3015371		Cover-burner Box		Appelez-nous	-
26	3015372		Cover - Front Main		Appelez-nous	-
15A	3131453		B/s-panel-almond Lh		Appelez-nous	-
18A	3017142		Insul - Oven Wrap (non-illustrated)				$ 193.50
18B	3131246		Insul - Oven Back (non-illustrated)		Appelez-nous	-
19A	241T017P255		Fastener, Power Cord		Appelez-nous	-
19B	241T047P02		Fastener, Wire		Appelez-nous	-
21A	3131903		Bumper				$ 55.36
21B	694T092F01		Support-oven-bot (2)		Appelez-nous	-
22A	554T388F02		Plate-oven Light		Appelez-nous	-
22B	3131244		Cover, Power Cord		Appelez-nous	-
23A	316282700		Screw, Oven Bottom   (Replaces: 3131732)				$ 9.93
6A	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37

    View Diagram in Separate Window       Print Part List
