View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Burner, Manifold And Gas Control
06 - Body Parts
07 - Broiler Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

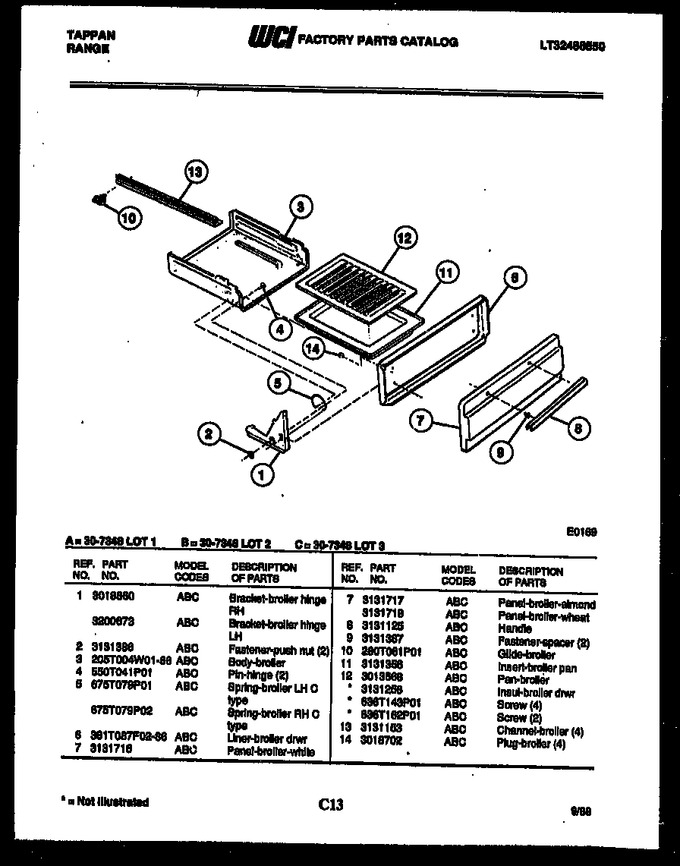

| 1 | 3018860 | Bracket, Broiler Hinge, Rh |
|
- | |||||
| 2 | 3131386 | Fastener, Push Nut (2) |
|
- | |||||
| 3 | 205T004W01-86 | Body, Broiler |
|
- | |||||
| 4 | 550T041P01 | Pin, Hinge (2) |
|
- | |||||
| 5 | 675T079P01 | Spring, Broiler, Lh (c Type) |
|
- | |||||
| 6 | 381T087F02-86 | Liner-broiler Drwr |
|
- | |||||
| 7 | 3131716 | Panel-broiler-white |
|
- | |||||
| 7 | 3131718 | Panel-broiler-wheat |
|
- | |||||
| 7 | 3131717 | Panel-broiler-almond |
|
- | |||||
| 8 | 3131125 | Handle |
|
- | |||||
| 9 | 3131387 | Fastener-spacer (2) |
|
- | |||||
| 10 | 280T061P01 | Glide - Broiler |
|
- | |||||
| 11 | 3131356 | Insert, Broiler Pan |
|
- | |||||
| 12 | 3013568 | Pan, Broiler |
|
- | |||||
| 13 | 3131153 | Channel, Broiler (4) |
|
- | |||||
| 14 | 3018702 | Plug - Broiler (4) |
|
- | |||||
| 12A | 3131258 | Insul, Broiler Drwr (non-illustrated) |
|
- | |||||
| 12B | 636T143P01 | Screw |
|
- | |||||
| 12C | 636T162P01 | Screw (2) (non-illustrated) |
|
- | |||||
| 1A | 3200673 | Bracket, Broiler Hinge, Lh |
|
- | |||||
| 5A | 675T079P02 | Spring, Broiler, Rh (c Type) |
|
- |
