01 - Control Panel Parts

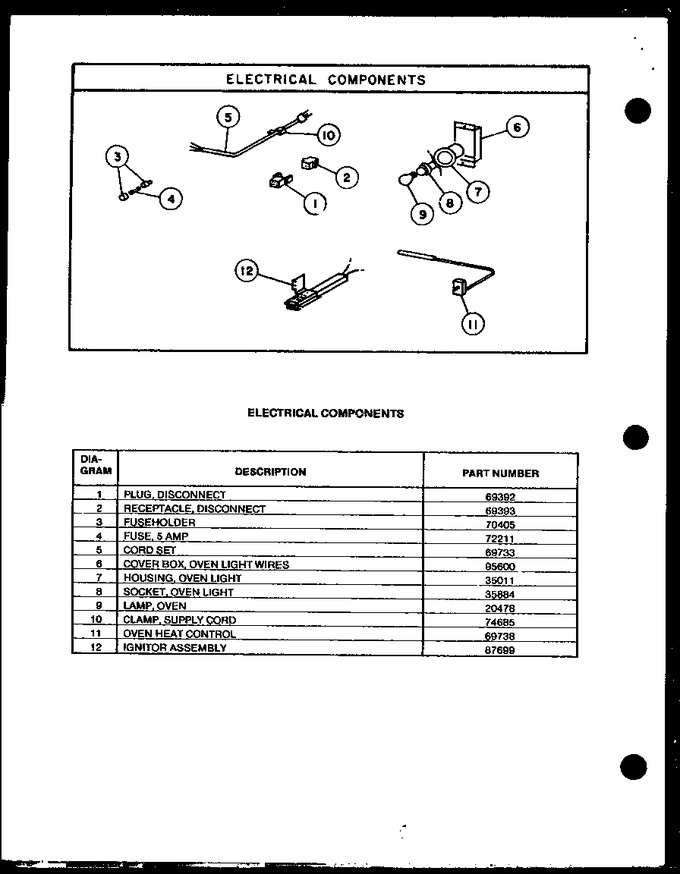

02 - Electrical Components
03 - Gas Components
04 - Main Body Parts
05 - Oven And Broiler Door Parts
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 69392 | Plug, Discounnect |
|
Immediately | $ 139.64 | ||||
| 2 | 69393 | Receptacle, Disconnect |
|
- | |||||
| 3 | 1N4004 | Flex Tube, 3/4`` X 24`` (Replaces: 70405) |
|
- | |||||
| 4 | 72211 | Fuse, 5 Amp |
|
- | |||||
| 5 | 69733 | Cord Set |
|
- | |||||
| 6 | 0095600 | Wire Cover Box Oven Light |
|
- | |||||
| 7 | RO41 | Housing, Oven Light (Replaces: 35011) |
|
Immediately | $ 27.76 | ||||
| 8 | 35884 | Socket, Oven Light |
|
- | |||||
| 9 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 16.80 | ||||
| 10 | 74685 | Clamp, Supply Cord |
|
- | |||||
| 11 | 69738 | Oven Heat Control |
|
- | |||||
| 12 | 786324 | Kit, Ignitor-bake/broil (Replaces: Y0087699) |
|
Immediately | $ 60.68 |
