01 - Control Panel Parts


02 - Electrical Components


03 - Gas Components

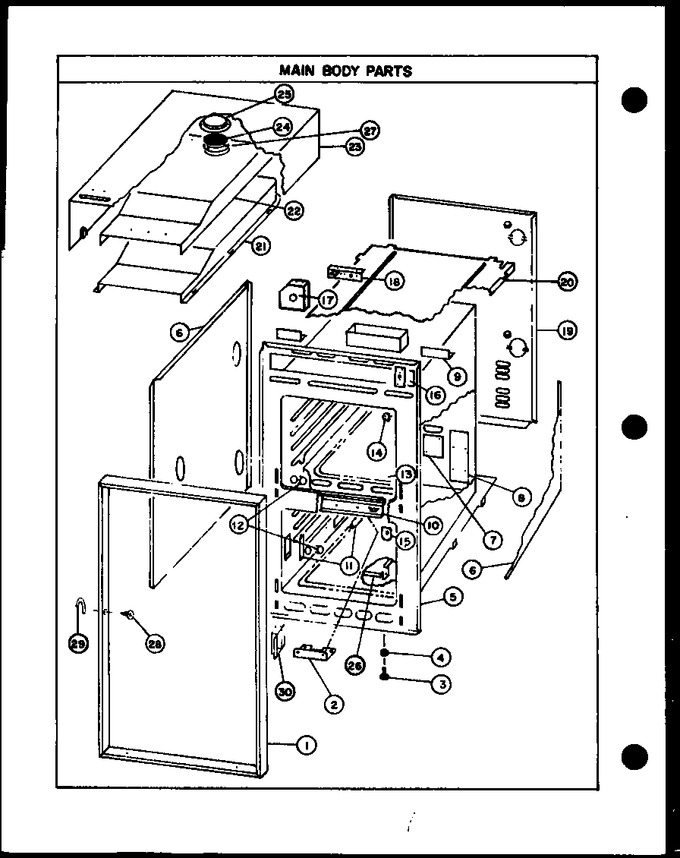

04 - Main Body Parts


05 - Oven And Broiler Door Parts


06 - Page 1


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	64410		Bezel		Appelez-nous	-
2	0099887		Burner Support Bracket Utra Ry		Appelez-nous	-
3	0095648		Leveling Leg		Appelez-nous	-
4	0098548		Nut Retainer		Appelez-nous	-
5	69725		Main Body		Appelez-nous	-
6	0095916		Panel, Side		Appelez-nous	-
7	74298		Cover Plate		Appelez-nous	-
8	0095901		Cover, Valve		Appelez-nous	-
9	Y0093765		Sub 61032, Shield, Wiring		Appelez-nous	-
10	Y0095787		Front Cross Channel		Appelez-nous	-
11	Y73888		Cover, Spring		Appelez-nous	-
12	20422		Plug Button		Appelez-nous	-
13	64727		Oven Bottom, Dg0757		Appelez-nous	-
14	35916		Plug Button		Appelez-nous	-
15	Y0094645		Hole Cover		Appelez-nous	-
16	69740		Bracket, Heat Control			Immediately	$ 17.96
17	35238		Panel,graphic		Appelez-nous	-
18	69749		Mounting Bracket, Terminal Blo		Appelez-nous	-
19	77337		Main Back		Appelez-nous	-
20	Y0095727		Retainer, Top Insul.		Appelez-nous	-
21	0095584		Horizontal Flueway Suffix V		Appelez-nous	-
22	Y0095468		Insulation Cover Suffix V		Appelez-nous	-
23	Y0095751		Top Heat Shield Suffix V		Appelez-nous	-
24	35897		Cover		Appelez-nous	-
25	35139		Palnut		Appelez-nous	-
26	0095051		Shield, Heat		Appelez-nous	-
27	76923		Insulator Ring		Appelez-nous	-
28	0098258		Sub 078419, Screw Phillips		Appelez-nous	-
29	Y0097916		Nut, Speed No.6-32		Appelez-nous	-
30	73889		Box, Orifice		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
