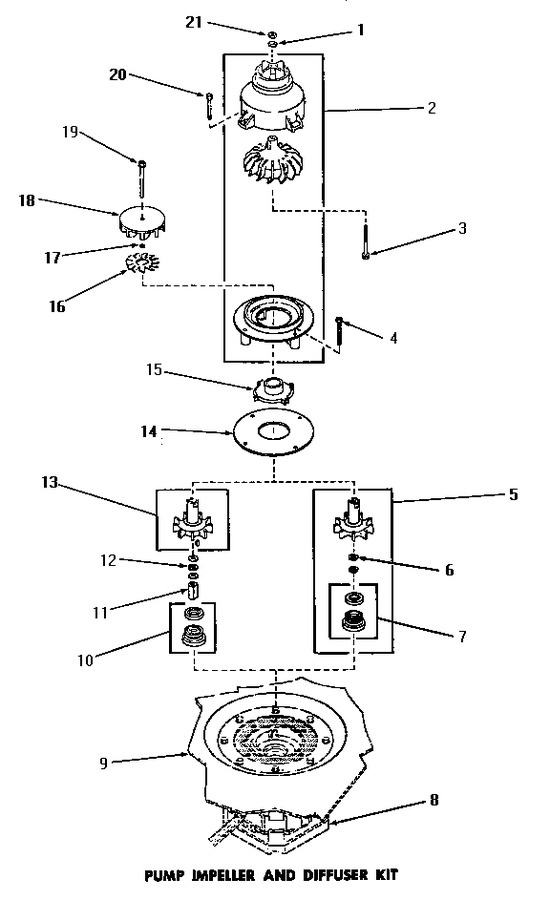

12 - Pump Impeller & Diffuser Kit


13 - Racks


14 - Spray Arms & Hoses


15 - Tub, Gasket, Float Switch & Heating Elem


16 - Wires & Terminals


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	21456		Lockwasher,1/4 Intshkp				$ 154.99
2	272P3		Diffuser Kit		Appelez-nous	-
3	M110142		Screw Xreplace		Appelez-nous	-
4	M110192		Screw Xreplace		Appelez-nous	-
4	M110141		Screw,hex Head Xreplace		Appelez-nous	-
5	281P3		Kit,impeller		Appelez-nous	-
6	M110246		Shim		Appelez-nous	-
7	M110026		Seal Xreplace		Appelez-nous	-
8	Y00000000		See Note Motor And Pump Body		Appelez-nous	-
9	Y00000000		See Note Tub		Appelez-nous	-
10	M110026		Seal Xreplace		Appelez-nous	-
11	M110013		Spacer		Appelez-nous	-
12	M110018		Shim		Appelez-nous	-
13	M110019		Kit,impeller Xreplace		Appelez-nous	-
14	M110021		Plate,pump Xreplace		Appelez-nous	-
15	M110022		Shroud,impeller Xreplace		Appelez-nous	-
16	M110024		Blade,macerator Xreplace		Appelez-nous	-
17	M110020		Ring,o Xreplace		Appelez-nous	-
18	M110025		Impeller-upper Xreplace		Appelez-nous	-
19	M110142		Screw Xreplace		Appelez-nous	-
20	M110141		Screw,hex Head Xreplace		Appelez-nous	-
21	Q6163		Nut				$ 2.09
