01 - 270p3 Door Latch Kit


02 - Accessory Kits


03 - Control Panel & Controls


04 - Detergent Dispenser


05 - Frame


06 - Inlet Valve & Water Inlet


07 - Kitchen Console Base Cabinet


08 - Loading Door & Access Panel


09 - M110063 Door Latch


10 - M110204 Door Latch


11 - Motor, Relay & Pump Body


12 - Pump Impeller & Diffuser Kit


13 - Racks


14 - Spray Arms & Hoses


15 - Tub, Gasket, Float Switch & Heating Elem


16 - Wires & Terminals

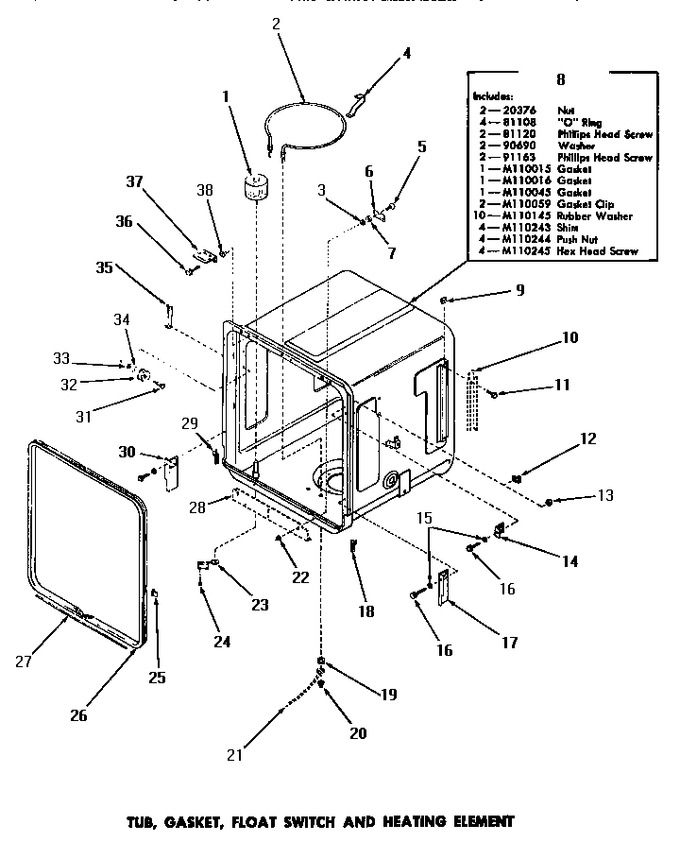

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M110048		Float Xreplace		Appelez-nous	-
2	M110027		Element,heater Xreplace		Appelez-nous	-
3	M110145		Washer,rubber Xreplace		Appelez-nous	-
4	M110043		Clamp,element Xreplace		Appelez-nous	-
5	81120		Phillips Head Screw		Appelez-nous	-
6	M110059		Clip,gasket Xreplace		Appelez-nous	-
7	90690		Washer		Appelez-nous	-
8	M110047		Tub		Appelez-nous	-
9	Y81061		Speed Nut		Appelez-nous	-
10	Y00000000		See Note Side Channel		Appelez-nous	-
11	02422		Screw,1/4-20 X 1/2 Hex		Appelez-nous	-
12	M100017		Speed Nut		Appelez-nous	-
14	M110055		Door Guide		Appelez-nous	-
15	21643		Washer,13/64idx3/8odx1		Appelez-nous	-
16	51924		Screw,10-24 X 1/2 Hex		Appelez-nous	-
17	M110240		Door Guide, Right		Appelez-nous	-
18	M110053		Guide,r.h. Xreplace		Appelez-nous	-
19	M110050		Grommet Xreplace		Appelez-nous	-
20	M110051		Nut,element Xreplace		Appelez-nous	-
21	Y00000000		See Note Ground Wire		Appelez-nous	-
22	20376		No Longer Available				$ 161.60
23	M110049		Switch,float Xreplace		Appelez-nous	-
24	M110147		Hex Head Screw		Appelez-nous	-
25	M110054		Fastener,gasket Xreplace		Appelez-nous	-
26	M110045		Gasket,include M110046xreplace		Appelez-nous	-
27	M110046		Wire,gasket Xreplace		Appelez-nous	-
28	Y00000000		See Note Hinge Weldment		Appelez-nous	-
29	M110052		Guide,l.h. Xreplace		Appelez-nous	-
30	M110239		Door Guide, Left		Appelez-nous	-
31	M110056		Screw,shoulder Xreplace		Appelez-nous	-
32	M110057		Roller Xreplace		Appelez-nous	-
33	M110145		Washer,rubber Xreplace		Appelez-nous	-
34	90690		Washer		Appelez-nous	-
35	M110058		Plate,tapping Xreplace		Appelez-nous	-
36	M110245		Hex Head Screw		Appelez-nous	-
37	M110060		Top Hold-down Bracket		Appelez-nous	-
38	M110244		Push Nut		Appelez-nous	-
