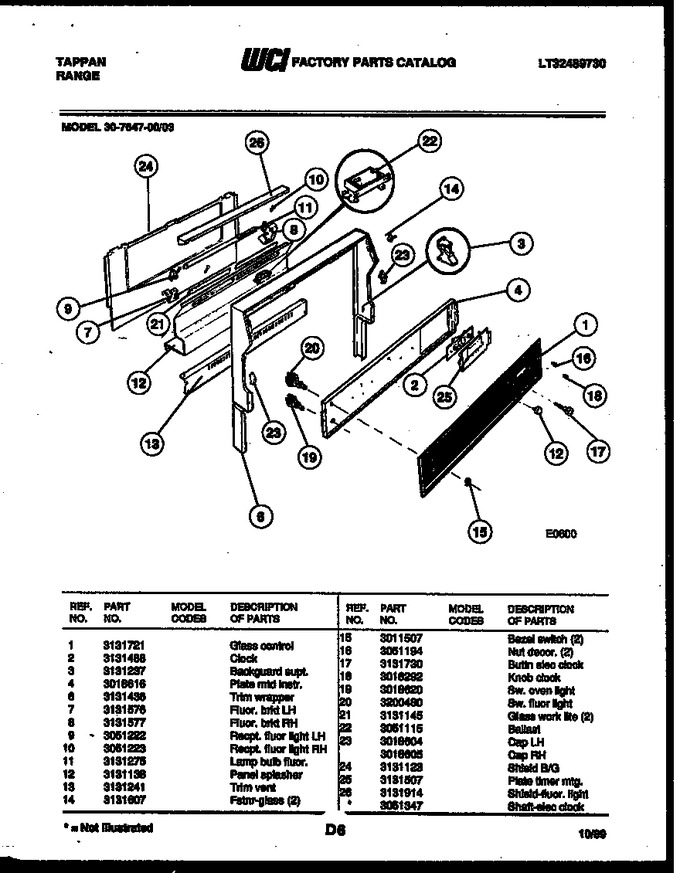

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131721 | Glass Control |
|
- | |||||
| 2 | 3131488 | Clock |
|
- | |||||
| 3 | 3131237 | Backguard Supt. |
|
- | |||||
| 4 | 3018616 | Plate-mtd Instr |
|
- | |||||
| 6 | 3131436 | Trim Wrapper |
|
- | |||||
| 7 | 3131576 | Fluor, Brkt Lh |
|
- | |||||
| 8 | 3131577 | Fluor, Brkt Rh |
|
- | |||||
| 9 | 3051222 | Recpt, Fluor Light Lh |
|
- | |||||
| 10 | 3051223 | Recpt, Fluor, Light Rh |
|
- | |||||
| 11 | 3131275 | Lamp Bulb Fluor. |
|
$ 49.40 | |||||
| 12 | 3131138 | Panel Splasher |
|
- | |||||
| 13 | 3131241 | Trim-vent |
|
- | |||||
| 14 | 3131607 | Fstnr Glass (2) |
|
- | |||||
| 15 | 3011507 | Bezel - Switch (2) |
|
- | |||||
| 16 | 3051194 | Nut - Decor (2) |
|
- | |||||
| 17 | 3131730 | Buttn Elec Clock |
|
- | |||||
| 18 | 3016292 | Knob-clock |
|
- | |||||
| 19 | 3018620 | Sw. Oven Light |
|
- | |||||
| 20 | 3200480 | Sw. Fluor Light |
|
- | |||||
| 21 | 3131145 | Glass-work Lite (2) |
|
- | |||||
| 22 | 3051115 | Ballast |
|
- | |||||
| 23 | 3018604 | Cap-lh |
|
- | |||||
| 24 | 3131123 | Shield B/g |
|
- | |||||
| 25 | 3131507 | Plate - Timer Mtg |
|
- | |||||
| 26 | 3131914 | Shield-fluor. Light |
|
- | |||||
| *34997 | 3051347 | Shaft-elec Clock |
|
- | |||||
| 23A | 3018605 | Cap-rh |
|
- |
