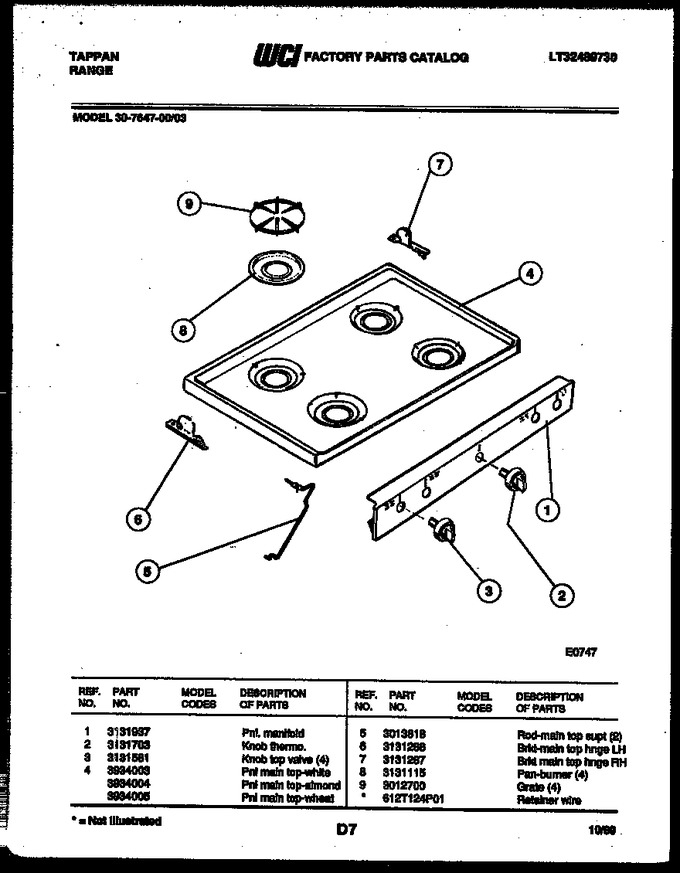

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3131937 | Pnl Manifold |
|
- | |||||
| 2 | 3131703 | Knob-thermo |
|
- | |||||
| 3 | 3131581 | Knob, Top Valve (4) |
|
- | |||||
| 4 | 3934003 | Pnl Main Top-white |
|
- | |||||
| 4 | 3934005 | Pnl Main Top (wheat) |
|
- | |||||
| 4 | 3934004 | Pnl Main Top-almond |
|
- | |||||
| 5 | 3013818 | Rod-main Top Supt. (2) |
|
- | |||||
| 6 | 3131286 | Brkt-main Top Hnge Lh |
|
- | |||||
| 7 | 3131287 | Brkt Main Top Hnge Rh |
|
- | |||||
| 8 | 3131115 | Pan, Burner (4) |
|
- | |||||
| 9 | 3012700 | Grate (4) |
|
- | |||||
| *34999 | 612T124P01 | Retainer - Wire |
|
- |
