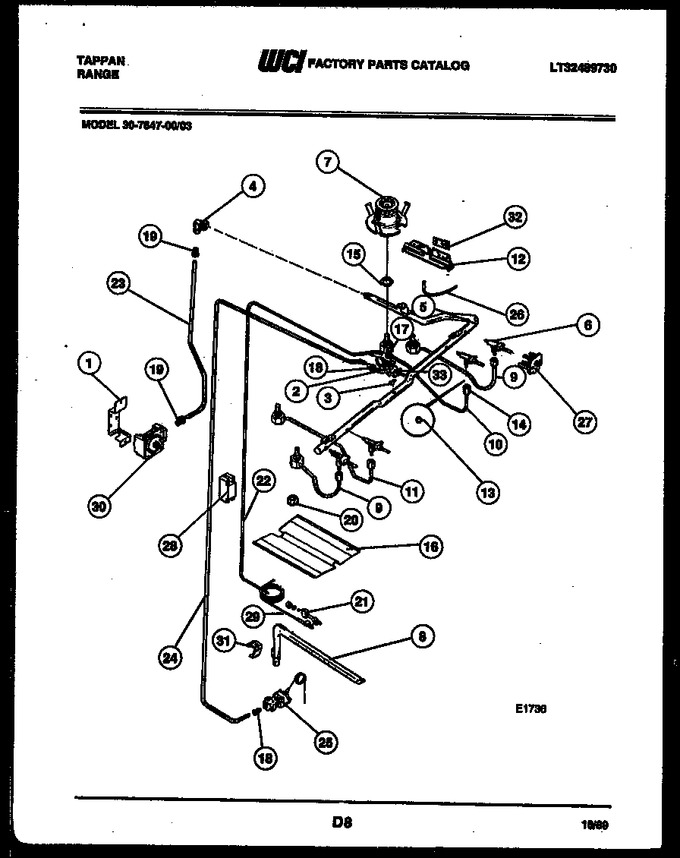

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131183		Brt. Regul.		Appelez-nous	-
2	3018622		Thermostat		Appelez-nous	-
3	3018601		Adapter-thermo		Appelez-nous	-
4	3012204		Elbow		Appelez-nous	-
5	3018612		Manifold-pipe		Appelez-nous	-
6	3017846		Valve 3 Pos (4)		Appelez-nous	-
7	3011567		Burner Top (4)		Appelez-nous	-
8	3131571		Burner, Oven		Appelez-nous	-
9	3131970		Burner Tube Lf		Appelez-nous	-
10	3015569		Burner Tube Rr		Appelez-nous	-
11	3011570		Burner-tube (lr)		Appelez-nous	-
12	136T355W03		Channel, Flash Tube		Appelez-nous	-
13	3012358		Ferrule (4)		Appelez-nous	-
14	3131148		Nut Compressn (4)		Appelez-nous	-
15	3013279		Nut, Special, 4				$ 2.34
16	3131327		Baffle, Oven		Appelez-nous	-
17	3131404		Fitting, Loxit		Appelez-nous	-
18	3131403		Fitting, Loxit		Appelez-nous	-
19	3131261		Fitting, Loxit		Appelez-nous	-
20	3013272		Nut - Baffle		Appelez-nous	-
21	3018613		Pilot-oven		Appelez-nous	-
22	3018623		Tube-oven Pilot 3/16		Appelez-nous	-
23	3014477		Tube - Alum 3/8		Appelez-nous	-
24	3018624		Tube-alum. 3/8		Appelez-nous	-
25	3131405		Valve-safety		Appelez-nous	-
26	3012879		Igniter-elec Top Burner		Appelez-nous	-
27	3131580		Switch Ign, (4)		Appelez-nous	-
28	3200332		Igniter-module		Appelez-nous	-
29	3934047		Igniter-elect.		Appelez-nous	-
30	3018606		Control-regul		Appelez-nous	-
31	3018603		Brkt-oven Burner Support		Appelez-nous	-
32	3018617		Retainer Ign.		Appelez-nous	-
33	3018621		Oven Ignitor Switch		Appelez-nous	-
32A	3051420		Pop Rivet (non-illustrated)		Appelez-nous	-
