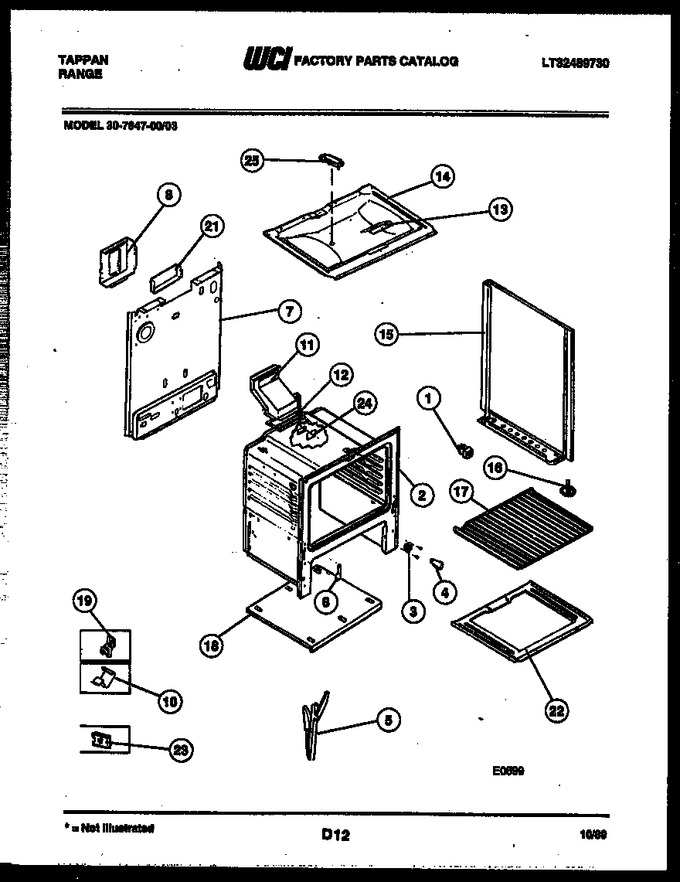

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3014099		Spacer, B/s (8)				$ 3.62
3	3014073		Socket-oven Light		Appelez-nous	-
4	3013073		Light-bulb		Appelez-nous	-
5	3131569		Chanl-door Hng (2)		Appelez-nous	-
6	3131570		Cover Hng. Cutout (2)				$ 7.35
7	3131567		Back, Main		Appelez-nous	-
8	3131660		Shield, Rear Wall		Appelez-nous	-
10	145T130P01		Clip - Wire (1)		Appelez-nous	-
11	3131904		Flue		Appelez-nous	-
12	3131355		Gasket-flue (1)		Appelez-nous	-
13	3131101		Cover, Plate		Appelez-nous	-
14	095T030F02-86		Burner Box		Appelez-nous	-
15	3131454		B/s Pal-almond Rh		Appelez-nous	-
16	08010569		Screw, Leveling (4)		Appelez-nous	-
17	3131973		Rack, Oven (2)		Appelez-nous	-
18	3011519		Bttm-oven		Appelez-nous	-
19	3011805		Clip-thermo		Appelez-nous	-
21	3131348		Shield-flue		Appelez-nous	-
22	3131180		Base, Broil		Appelez-nous	-
23	3012323		Fstnr. Hinge		Appelez-nous	-
24	3018607		Cover Plate				$ 10.50
25	3015371		Cover-burner Box		Appelez-nous	-
15A	3131453		B/s Pnl (almond) Lh		Appelez-nous	-
18A	3017146		Insul Oven Wrap (non-illustrated)		Appelez-nous	-
18B	3131246		Insul - Oven Back (non-illustrated)		Appelez-nous	-
19A	3012327		Fstnr-powr Cord (non-illustrated)		Appelez-nous	-
19B	3012332		Fstnr. Wire		Appelez-nous	-
21A	3131903		Bumper				$ 55.36
21B	3014226		Supt - Oven Bttm (2) (non-illustrated)		Appelez-nous	-
22A	3018615		Plate-oven Light (non-illustrated)		Appelez-nous	-
22B	3131244		Cvr-pwr Cord (non-illustrated)		Appelez-nous	-
23A	3015373		Cvr Frnt Main (non-illustrated)		Appelez-nous	-
23B	316282700		Screw - Oven Bottom (non-illustrated)   (Replaces: 3131732)				$ 9.93
6A	5304534000		Cord, Power (non-illustrated)   (Replaces: 3131425)			Immediately	$ 33.37
