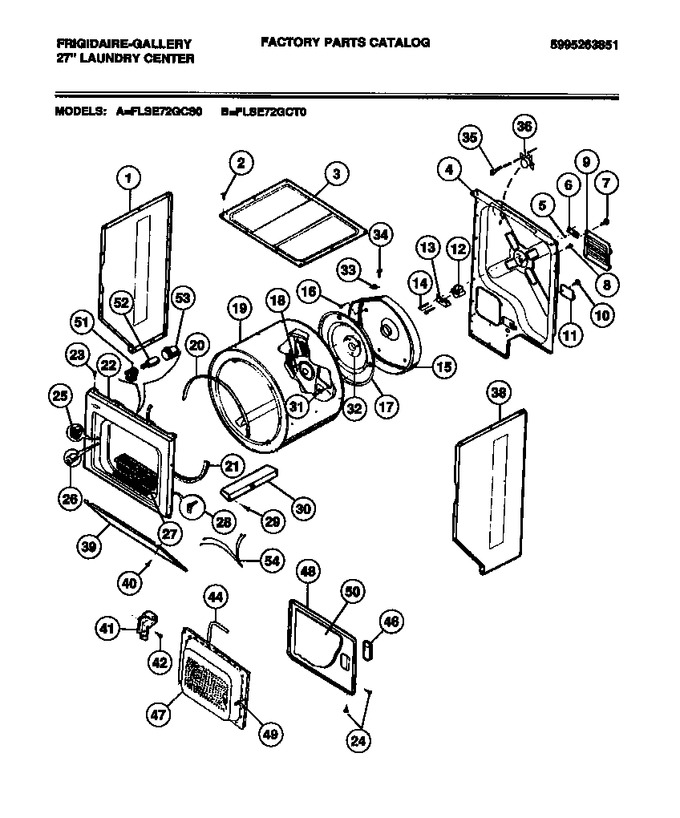

02 - Dryer Cabinet, Drum, Door
03 - Dryer Motor, Base
04 - Controls
05 - Washer Cabinet, Base, Lid
06 - Washer Motor, Tub, Hoses
07 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131084700 | Panel-left Side-white |
|
$ 93.82 | |||||
| 2 | 131168200 | Screw (10) |
|
Immediately | $ 14.18 | ||||
| 3 | 3204247 | Panel-top |
|
- | |||||
| 4 | 5303283283 | Panel-rear |
|
- | |||||
| 5 | 5303281019 | Ball |
|
$ 16.30 | |||||
| 6 | 5303281020 | Clip |
|
$ 17.01 | |||||
| 7 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 8 | 131168200 | Screw (15) |
|
Immediately | $ 14.18 | ||||
| 9 | 3204249 | Panel-motor Access |
|
- | |||||
| 10 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 11 | 3204250 | Cover |
|
$ 34.91 | |||||
| 12 | 131825900 | Bearing-rear (Replaces: 5303281008) |
|
Immediately | $ 10.97 | ||||
| 13 | 131724301 | Bracket (Replaces: 5303281023) |
|
Immediately | $ 25.66 | ||||
| 14 | 131205400 | Screw |
|
$ 12.76 | |||||
| 15 | 3937010 | Heater Housing & Duct Assembly (Replaces: 131234600) |
|
Immediately | $ 193.49 | ||||
| 16 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 17 | 3204254 | Baffle-heater |
|
$ 129.00 | |||||
| 18 | 131378200 | Screw-drum To Shaft Support (3) |
|
- | |||||
| 19 | 134138400 | Drum (Replaces: 5303283284) |
|
$ 591.10 | |||||
| 20 | DE790 | Glide-drum (Replaces: 5303937123) |
|
Immediately | $ 40.53 | ||||
| 21 | 5303283286 | Felt-lower |
|
$ 48.04 | |||||
| 22 | 131150702 | Panel-front-white |
|
- | |||||
| 23 | 131168200 | Screw-front Panel To Side Panel (2) |
|
Immediately | $ 14.18 | ||||
| 24 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 25 | 5366021400 | Door Catch (Replaces: 5307521419) |
|
Immediately | $ 55.99 | ||||
| 26 | 08006623 | Door-switch |
|
- | |||||
| 27 | WG04L05872 | Lint Trap (Replaces: 131152700) |
|
$ 90.50 | |||||
| 28 | 5303281074 | Guide Clip (4) |
|
$ 18.27 | |||||
| 29 | 131205200 | Screw (6) |
|
- | |||||
| 30 | 137552900 | Vane (3) (Replaces: 5303201200) |
|
$ 54.95 | |||||
| 31 | 131378200 | Screw-baffle To Drum (3) |
|
- | |||||
| 32 | 131777700 | Support-shaft (Replaces: 131378400) |
|
Immediately | $ 71.87 | ||||
| 33 | 3204267 | Thermostat-safety |
|
Immediately | $ 53.49 | ||||
| 34 | 131243700 | Screw (2) |
|
$ 3.36 | |||||
| 35 | 08010804 | Screw |
|
- | |||||
| 36 | 134120900 | Thermal Limiter (Replaces: 5303209192) |
|
Immediately | $ 13.21 | ||||
| 38 | 131084800 | Panel-right Side-white |
|
- | |||||
| 39 | 137546910 | Panel-access-white (Replaces: 131084402) |
|
$ 184.19 | |||||
| 40 | 131202300 | Screw (2) |
|
Immediately | $ 13.46 | ||||
| 42 | 3205239 | Screw-hinges To Door/front Panel (8) |
|
- | |||||
| 44 | 137551901 | Gasket-door (Replaces: 131129900) |
|
Immediately | $ 41.00 | ||||
| 46 | 131063600 | Handle-door-white |
|
- | |||||
| 47 | 5303300245 | Door-inner-white |
|
- | |||||
| 48 | 3204284 | Door-outer-white |
|
- | |||||
| 49 | 5303207102 | Strike Door (Replaces: 5303211430) |
|
Immediately | $ 19.85 | ||||
| 50 | 134535300 | Shield-heat (Replaces: 3204286) |
|
$ 60.25 | |||||
| 51 | 5303212867 | Lamp Receptacle |
|
- | |||||
| 52 | 131843500 | Lamp (Replaces: 5303212868) |
|
$ 73.00 | |||||
| 53 | 3204288 | Cover-lamp |
|
- | |||||
| 54 | 5303270324 | Harness-door Switch |
|
- | |||||
| *19720 | 5300622034 | Coil Only |
|
Immediately | $ 66.50 | ||||
| *19721 | 3202786 | Block, Terminal |
|
$ 64.49 | |||||
| *19722 | 131472100 | Insulator (Replaces: 5303202788) |
|
$ 60.01 | |||||
| 41A | 3204275 | Hinge-upper |
|
$ 62.95 | |||||
| 41B | 3204276 | Hinge-lower |
|
- |
