02 - Dryer Cabinet, Drum, Door

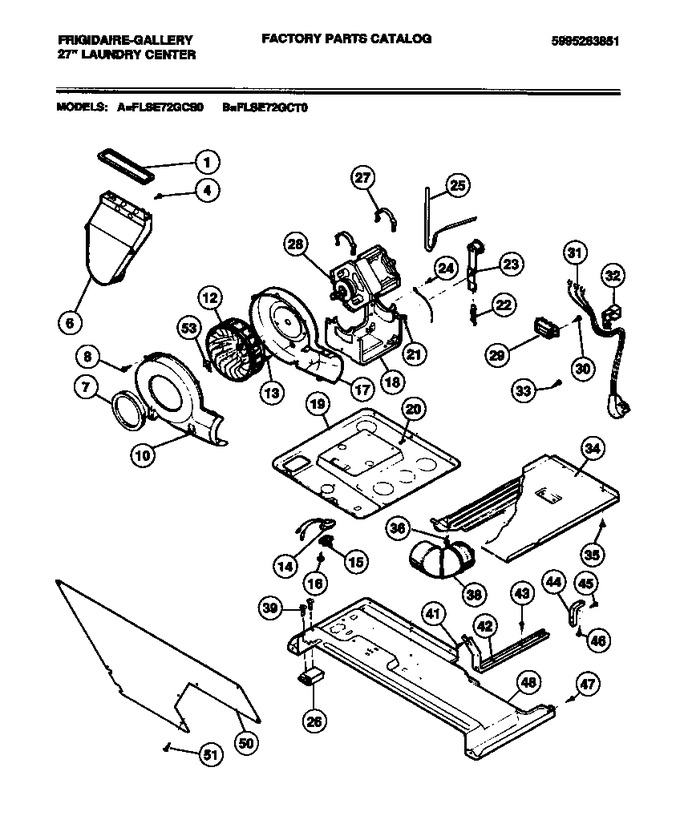

03 - Dryer Motor, Base
04 - Controls
05 - Washer Cabinet, Base, Lid
06 - Washer Motor, Tub, Hoses
07 - Transmission
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Seal-air Duct To Front |
|
$ 16.30 | |||||
| 4 | 131362400 | Fastener |
|
$ 9.41 | |||||
| 6 | 131311200 | Air Duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 10 | 131287600 | Front-blower Housing |
|
- | |||||
| 12 | 131476300 | Wheel-blower (Replaces: 5303212513) |
|
Immediately | $ 47.00 | ||||
| 13 | 131168200 | Screw (3) |
|
Immediately | $ 14.18 | ||||
| 14 | 5303206879 | Heater-thermostat |
|
- | |||||
| 15 | 3204307 | Thermostat-control |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw |
|
- | |||||
| 17 | 5303271179 | Housing-blower Rear |
|
- | |||||
| 18 | 131413600 | Motor-cradle |
|
$ 104.30 | |||||
| 19 | 131363901 | Motor-cradle-upper Pan |
|
- | |||||
| 21 | 131168200 | Screw |
|
Immediately | $ 14.18 | ||||
| 22 | 3205241 | Spring-idler |
|
$ 75.83 | |||||
| 23 | 3205242 | Arm-idler |
|
$ 205.60 | |||||
| 24 | 131243700 | Screw, Ground |
|
$ 3.36 | |||||
| 25 | 137292700 | Belt-dryer (Replaces: 5303283287) |
|
Immediately | $ 9.34 | ||||
| 26 | 5303212870 | Block (2) |
|
- | |||||
| 27 | 5303212834 | Clamp |
|
$ 3.78 | |||||
| 28 | 5303283288 | Dryer Motor |
|
$ 251.69 | |||||
| 29 | 134101400 | Terminal Block (Replaces: 5303937016) |
|
Immediately | $ 55.99 | ||||
| 30 | 131205300 | Screw (2) |
|
Immediately | $ 12.10 | ||||
| 31 | 5303212832 | Power Cord |
|
- | |||||
| 32 | 3204317 | Body-strain Relief |
|
- | |||||
| 33 | 131243700 | Ground Screw-rear Panel |
|
$ 3.36 | |||||
| 34 | 131112001 | Access Shield |
|
- | |||||
| 35 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 36 | 131243700 | Screw |
|
$ 3.36 | |||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 131205100 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 41 | 131168200 | Screw-bracket To Side Panels (4) |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Interior Marriage Bracket (2) |
|
- | |||||
| 43 | 3204325 | Screw-bracket To Bracket (4) |
|
- | |||||
| 44 | 3204326 | External Bracket (2) |
|
$ 43.24 | |||||
| 45 | 131168200 | Screw (4) |
|
Immediately | $ 14.18 | ||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 48 | 131379201 | Pan-bottom |
|
- | |||||
| 50 | 3204329 | Cover-safety |
|
$ 40.16 | |||||
| 51 | 131168200 | Screw (6) |
|
Immediately | $ 14.18 | ||||
| 53 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| *19723 | 5303209915 | Bushing-pan Upper |
|
- | |||||
| 20A | 131168200 | Screw-pan To Rear Panel (3) |
|
Immediately | $ 14.18 | ||||
| 20B | 131168200 | Screw-pan To Shield & Side Panel (4) |
|
Immediately | $ 14.18 |
