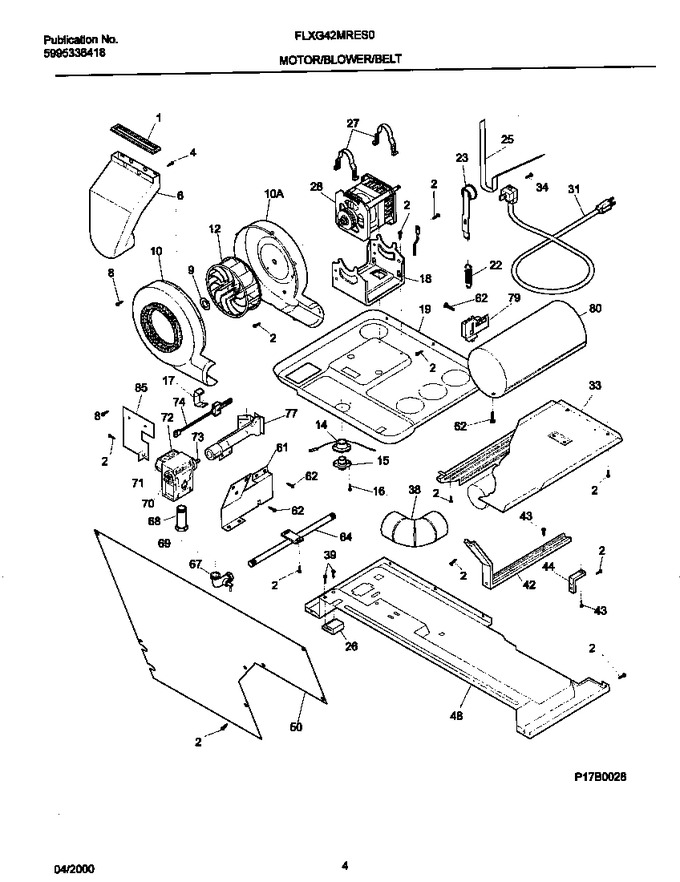

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131295200 | Seal-air Duct |
|
$ 16.30 | |||||
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 131362400 | Fastener |
|
$ 9.41 | |||||
| 6 | 5304521121 | Duct-air (Replaces: 131730500) |
|
$ 118.56 | |||||
| 8 | 3205245 | Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60 |
|
- | |||||
| 9 | 5304488479 | Clamp (Replaces: 5303304824) |
|
Immediately | $ 32.09 | ||||
| 10 | 131575200 | Housing-blower, Rear |
|
- | |||||
| 10 | 5304485558 | Asmy,frt Blw Hsg/seal (Replaces: 131784500) |
|
Immediately | $ 141.75 | ||||
| 12 | 131476300 | Wheel-blower |
|
Immediately | $ 47.00 | ||||
| 14 | 131658101 | Thermostat-heater |
|
$ 41.68 | |||||
| 15 | 131322600 | Thermostat-control, 15 |
|
$ 74.52 | |||||
| 16 | 3204308 | Screw-thermostat, Pph Cup Pt, 8-18 X .625 |
|
- | |||||
| 17 | 131715500 | Clip-igniter |
|
$ 9.22 | |||||
| 18 | 131413600 | Cradle & Stud |
|
$ 104.30 | |||||
| 19 | 131363901 | Pan-motor Cradle |
|
- | |||||
| 22 | 3205241 | Spring-idler |
|
$ 75.83 | |||||
| 23 | 5304507499 | Assy-idler & Pulley (Replaces: 131863100) |
|
Immediately | $ 42.66 | ||||
| 25 | 137292700 | Belt-dryer (Replaces: 5303283287) |
|
Immediately | $ 9.34 | ||||
| 26 | 5303212870 | Block-support |
|
- | |||||
| 27 | 131419800 | Clamp-motor |
|
$ 8.18 | |||||
| 28 | 5303937189 | Motor & Pulley (Replaces: 131542900) |
|
Immediately | $ 294.28 | ||||
| 31 | 131649800 | Cord-power |
|
- | |||||
| 33 | 131731411 | Shield-access (gas) |
|
- | |||||
| 34 | 134154100 | Screw-grnd Cab,hex Wshr Hd,10-32t X 0.375,serrate (Replaces: 131301100) |
|
$ 13.46 | |||||
| 38 | 3204320 | Elbow-exhaust |
|
- | |||||
| 39 | 131205100 | Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive |
|
Immediately | $ 14.18 | ||||
| 42 | 3204324 | Bracket-marriage |
|
- | |||||
| 43 | 131751500 | Screw 12-24 X .63 Hex Hd |
|
$ 9.50 | |||||
| 44 | 3204326 | Bracket-external |
|
$ 43.24 | |||||
| 48 | 131731300 | Pan-bottom |
|
- | |||||
| 50 | 3204329 | Cover-safety |
|
$ 40.16 | |||||
| 61 | 5303207404 | Bracket-gas Valve |
|
- | |||||
| 62 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 64 | 5303207405 | Pipe |
|
- | |||||
| 67 | 131498500 | Valve-shut Off |
|
- | |||||
| 68 | 5362791200 | Tail Piece,brass |
|
$ 52.98 | |||||
| 69 | 08015194 | Nut-union, Hex |
|
- | |||||
| 70 | 5303207409 | Valve Gas |
|
$ 433.76 | |||||
| 71 | 5300622602 | Coil-secondary |
|
- | |||||
| 72 | 5308015680 | Coil-booster |
|
- | |||||
| 73 | 5303211036 | Orifice-natural Gas |
|
- | |||||
| 74 | 5303937186 | Ignitor Assy (Replaces: 5303281151) |
|
$ 80.61 | |||||
| 77 | 131763500 | Assy-burner |
|
- | |||||
| 79 | 5303281135 | Sensor |
|
Immediately | $ 102.06 | ||||
| 80 | 131712405 | Tube-burner (Replaces: 131712401) |
|
$ 34.70 | |||||
| 85 | 131712300 | Shield-heat |
|
- | |||||
| *47880 | 131453000 | Bushing-drain Hose |
|
$ 10.63 | |||||
| *47881 | PCK3100 | Gas Conversion Kit, Natural To Lp (Replaces: 5303937053) |
|
$ 60.25 |
