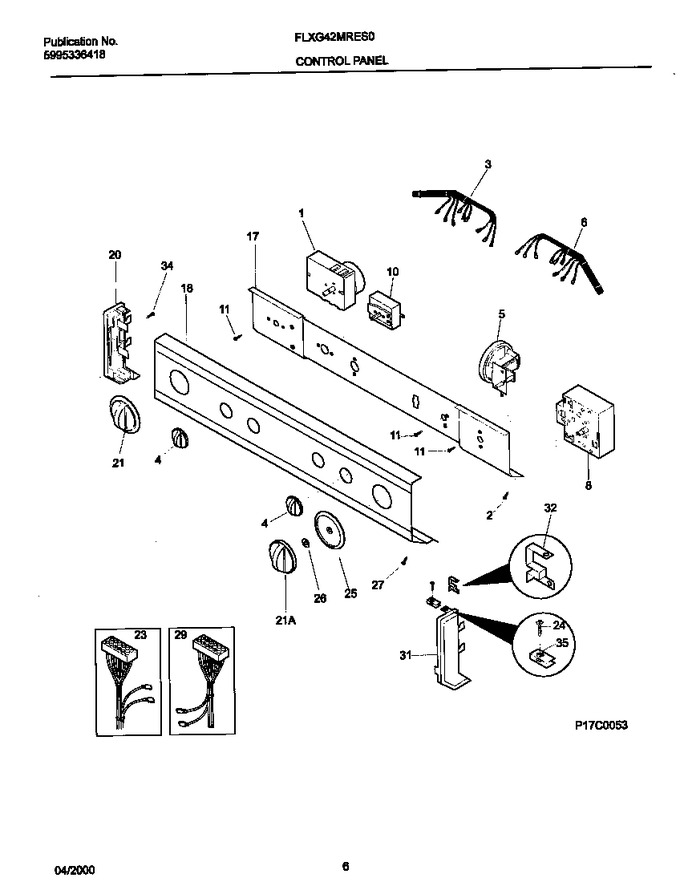

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 131225400 | Timer |
|
- | |||||
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 3 | 131956300 | Harn-dryer Cont L/c Gj Gas Tts |
|
- | |||||
| 4 | 131873401 | Knob-rotary-white (Replaces: 131168101) |
|
$ 49.73 | |||||
| 5 | 134422700 | Switch-pressure (Replaces: 131692000) |
|
Immediately | $ 98.06 | ||||
| 6 | 131694400 | Harness-washer Control |
|
- | |||||
| 8 | 131437300 | Timer-washer |
|
$ 295.05 | |||||
| 10 | 134399700 | Switch-start (Replaces: 131447500) |
|
Immediately | $ 83.77 | ||||
| 11 | 218359202 | Screw,cr Pan Head `8-32 X 0.250 ,thread Forming (Replaces: 5303283289) |
|
$ 10.63 | |||||
| 17 | 131712711 | Bracket-control |
|
- | |||||
| 18 | 131955200 | Trimplate Fdg8gjnh |
|
- | |||||
| 20 | 131288101 | End Cap,white ,lh |
|
$ 53.02 | |||||
| 21 | 131873304 | Knob-dryer Timer, White (Replaces: 131167801) |
|
Immediately | $ 59.54 | ||||
| 21 | 131167601 | Knob-timer Washer, White |
|
$ 54.95 | |||||
| 23 | 131848700 | Harness-lcd Main Gas |
|
- | |||||
| 24 | 134156200 | Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive (Replaces: 131209600) |
|
Immediately | $ 14.89 | ||||
| 25 | 131167701 | Dial-timer-white |
|
$ 61.81 | |||||
| 26 | 3205248 | Spacer-timer-shaft |
|
$ 13.02 | |||||
| 27 | 3205253 | Screw-end Cap, Pph B, 6-20 X .375 |
|
- | |||||
| 29 | 131778700 | Harn-lwr Wshr L/c G.e.,29 |
|
- | |||||
| 31 | 131288211 | End Cap, White, Rh |
|
$ 64.79 | |||||
| 32 | 3204357 | Clip-grounding |
|
$ 60.11 | |||||
| 34 | 131243700 | Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive |
|
$ 3.36 | |||||
| 35 | 5308014350 | Clip-end Cap |
|
- | |||||
| *47882 | 131209800 | Clamp-sw. Pressure |
|
$ 65.92 | |||||
| *47883 | 5304464772 | Strap (Replaces: 5303161300) |
|
$ 10.63 |
