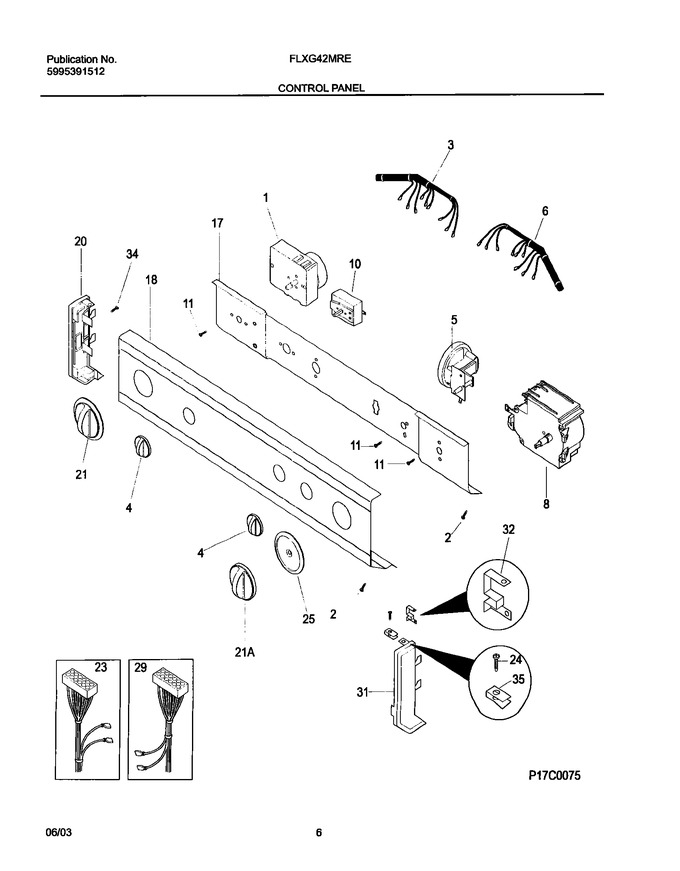

07 - Control Panel


09 - Lower Cabinet/top


11 - Motor/tub


13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
4	131873401		Knob,rotary ,white				$ 49.73
11	218359202		Screw,cr Pan Head `8-32 X 0.250 ,thread Forming   (Replaces: 5303283289)				$ 10.63
17	134135100		Bracket,control Mtg		Appelez-nous	-
18	131955200		Panel,trimplate ,console Front		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131873304		Knob,dryer Timer ,white   (Replaces: 131873301)			Immediately	$ 59.54
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131976801		Indicator,timer Pointer ,white/blue ,washer				$ 43.16
27	3205253		Screw,pan Head ,6-20b X 0.375		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw, Pan Head, 8-18ab X 0.375, Cr/sq Drive				$ 3.36
35	5308014350		Clip,end Cap Mtg ,u-type		Appelez-nous	-
21A	131977201		Knob,washer Timer ,white				$ 70.85
F1	131225400		Timer		Appelez-nous	-
F10	134399700		Switch,start ,turn Type   (Replaces: 131447500)			Immediately	$ 83.77
F23	131848700		Wiring Harness,main		Appelez-nous	-
F29	134113400		Wiring Harness,washer ,lower		Appelez-nous	-
F3	131956300		Wiring Harness,dryer Control		Appelez-nous	-
F5	134422700		Switch,pressure ,3 Posn, 1/2 Hp   (Replaces: 131692000)			Immediately	$ 98.06
F6	134121100		Wiring Harness,washer Control ,w/o Temp Switch		Appelez-nous	-
F8	131964100		Timer,washer			Immediately	$ 279.77
NI	5304464772		Strap,plastic   (Replaces: 5303161300)				$ 10.63
NI	131209800		Clamp,hose ,pressure Switch				$ 65.92
