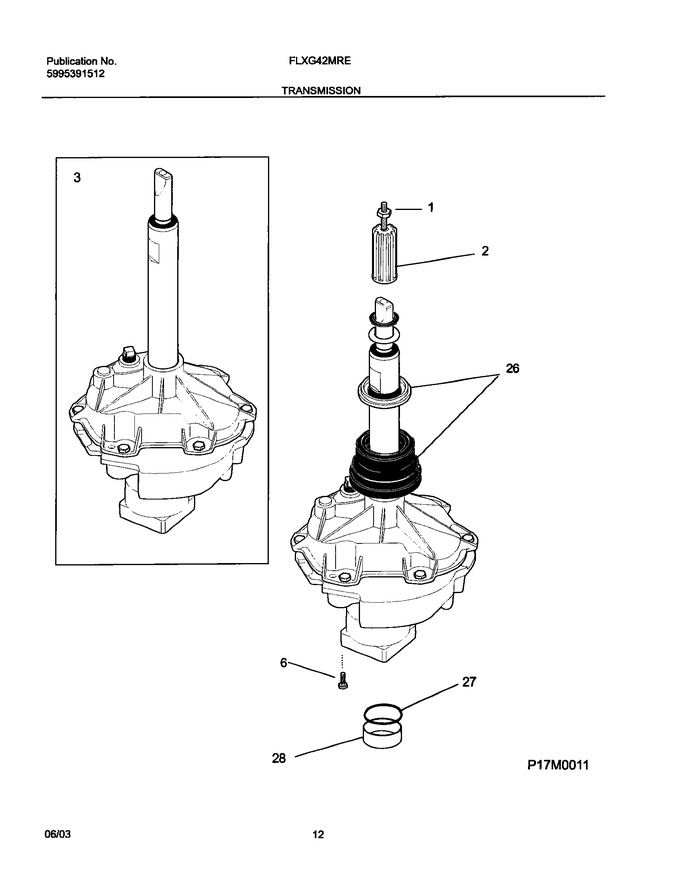

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131206800		Stud-agitator Cap				$ 48.20
2	5303306139		Hub-drive, Agitator		Appelez-nous	-
6	134197900		Screw,hex Washer Head ,1/4-20 X 0.437				$ 15.75
27	131784300		Washer,bearing Block ,transmission		Appelez-nous	-
28	131784400		Spacer,bearing Block ,transmission				$ 48.58
F26	5303279394		Seal Assy,tub ,transmission				$ 85.72
F3	134735700		Transmission Assy,h-helical Gear   (Replaces: 131878400)				$ 820.03

    View Diagram in Separate Window       Print Part List
