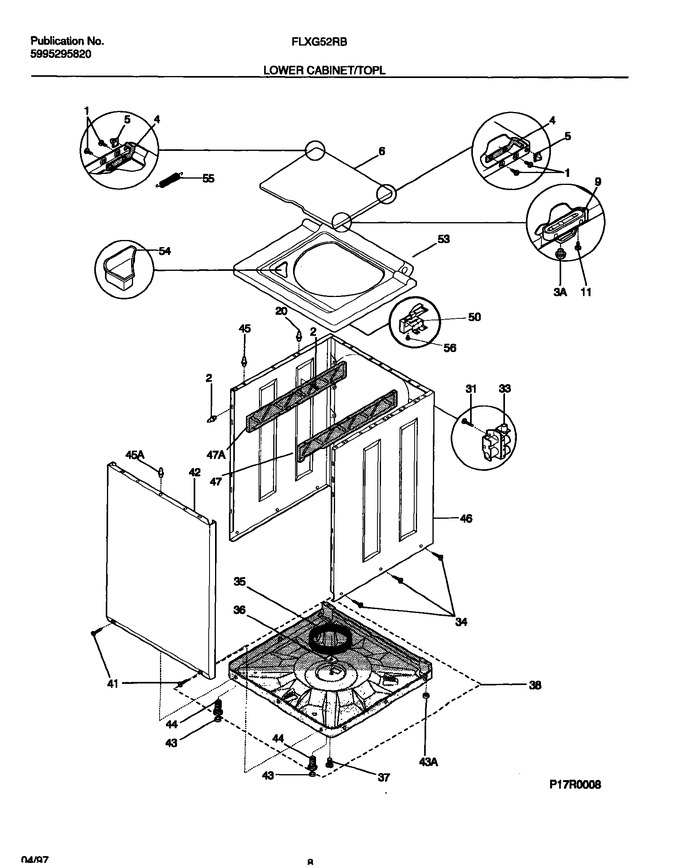

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 134203900 | Screw-hinge, Pph 45 Deg Hdrpt, 6-32 X .312 (Replaces: 131587500) |
|
$ 10.85 | |||||
| 2 | 131168200 | Screw, 8-18 X 0.31 |
|
Immediately | $ 14.18 | ||||
| 4 | 5304489657 | Hinge Bar (Replaces: 3205250) |
|
$ 82.93 | |||||
| 5 | 3204362 | Grommet-hinge |
|
- | |||||
| 6 | 5303212872 | Lid-white |
|
Immediately | $ 345.16 | ||||
| 9 | 131390000 | Strike-lid |
|
$ 55.19 | |||||
| 11 | 3204368 | Screw-strike, Pfh B, 6-20 X .375 |
|
$ 13.01 | |||||
| 20 | 3204374 | Pin-slide |
|
$ 78.67 | |||||
| 31 | 131202300 | Screw-, Pph Ab, 10-16 X 0.625 |
|
Immediately | $ 13.46 | ||||
| 34 | 131205500 | Screw-body, 1/4-14 X 0.625 |
|
$ 13.46 | |||||
| 35 | 5308002385 | Ring-snubber |
|
$ 54.86 | |||||
| 36 | 3204380 | Block-shipping |
|
$ 12.29 | |||||
| 37 | 131102900 | Screw-shipping, Hh Ab Yel, 1/4-14 X 0.750 |
|
- | |||||
| 38 | 5303311213 | Base Assembly |
|
$ 374.69 | |||||
| 41 | 131302800 | Screw-front Pnl,comb Th Ab ,10-16 X 0.500 (Replaces: 131258400) |
|
Immediately | $ 26.58 | ||||
| 42 | 131104303 | Panel - Front - White |
|
$ 309.70 | |||||
| 43 | 131422100 | Pad-leveling Leg |
|
$ 17.59 | |||||
| 44 | 134548800 | Leg-leveling, With Pad (Replaces: 5303309673) |
|
Immediately | $ 30.20 | ||||
| 45 | 131346400 | Pin, Locating |
|
$ 12.44 | |||||
| 46 | 131593500 | Body-white |
|
- | |||||
| 47 | 131106701 | Bracket-marriage-rh |
|
- | |||||
| 53 | 131452510 | Panel-top White |
|
- | |||||
| 54 | 3204394 | Dispenser-bleach |
|
$ 59.96 | |||||
| 55 | 134890500 | Spring-lid (Replaces: 5303212876) |
|
$ 19.85 | |||||
| 56 | 131243800 | Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive |
|
$ 10.46 | |||||
| 3A | 134075500 | Bumper-lid (Replaces: 3204369) |
|
$ 17.35 | |||||
| 43A | 131422200 | Pad-level Leg |
|
Immediately | $ 56.70 | ||||
| 45A | 131346401 | Pin-locating |
|
Immediately | $ 16.63 | ||||
| 47A | 131091001 | Bracket-marriage-lh |
|
- | |||||
| F33 | 134190200 | Valve-water (Replaces: 131389300) |
|
Immediately | $ 153.09 | ||||
| F50 | 131595100 | Lock-lid |
|
- | |||||
| NI | 131453000 | Bushing-snap |
|
$ 10.63 | |||||
| NI | 5303309503 | Clip-backsheet |
|
$ 7.09 |
