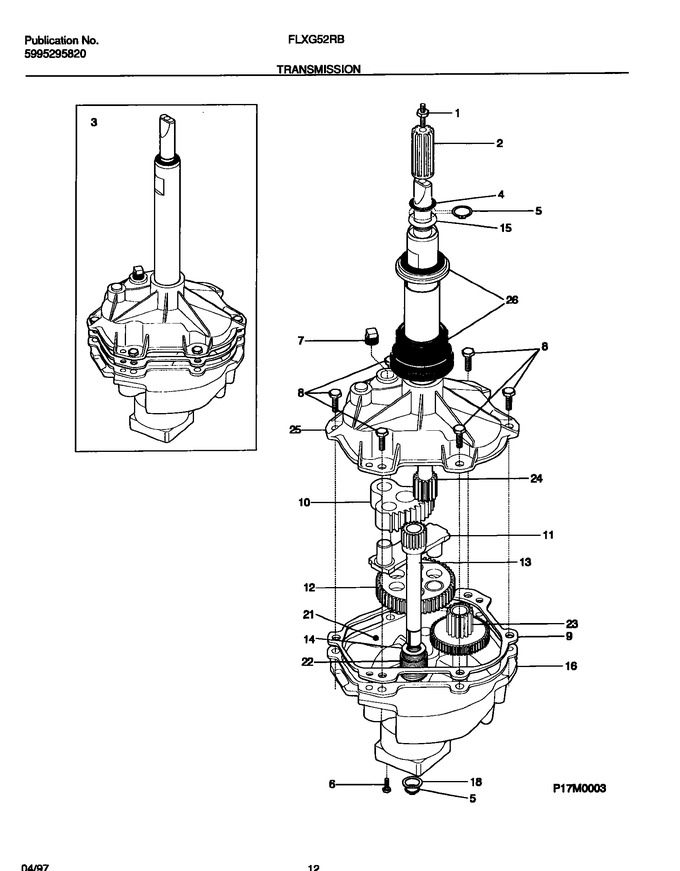

13 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131206800		Stud-agitator Cap				$ 48.20
2	5303306139		Hub-drive, Agitator		Appelez-nous	-
4	5303161307		Seal-upper, Lip			Immediately	$ 21.27
5	5303161223		Ring-retaining				$ 10.24
6	131346600		Screw		Appelez-nous	-
7	5303161224		Plug-pipe		Appelez-nous	-
8	5308002804		Screw-transm.		Appelez-nous	-
9	5308015778		Gasket				$ 33.18
10	5308011268		Gear-sector		Appelez-nous	-
11	5303161169		Rod-connecting		Appelez-nous	-
14	5303161226		Washer-thrust		Appelez-nous	-
15	5303161232		Washer		Appelez-nous	-
16	131362000		Housing-lower		Appelez-nous	-
18	5308002475		Washer-spacer		Appelez-nous	-
21	3005242		Oil-transmission (1 Qt)		Appelez-nous	-
22	131417600		Spring-small L.g.s.		Appelez-nous	-
25	131586700		Housing-upper		Appelez-nous	-
26	5303279394		Seal-tub				$ 85.72
F12	5308015496		Gear-crank		Appelez-nous	-
F13	5308014905		Shaft-lower		Appelez-nous	-
F23	5303161175		Gear-idler		Appelez-nous	-
F24	5308015507		Shaft-agitator		Appelez-nous	-
F3	134735700		Transmission Assy   (Replaces: 131586500)				$ 820.03
