New Model Search:

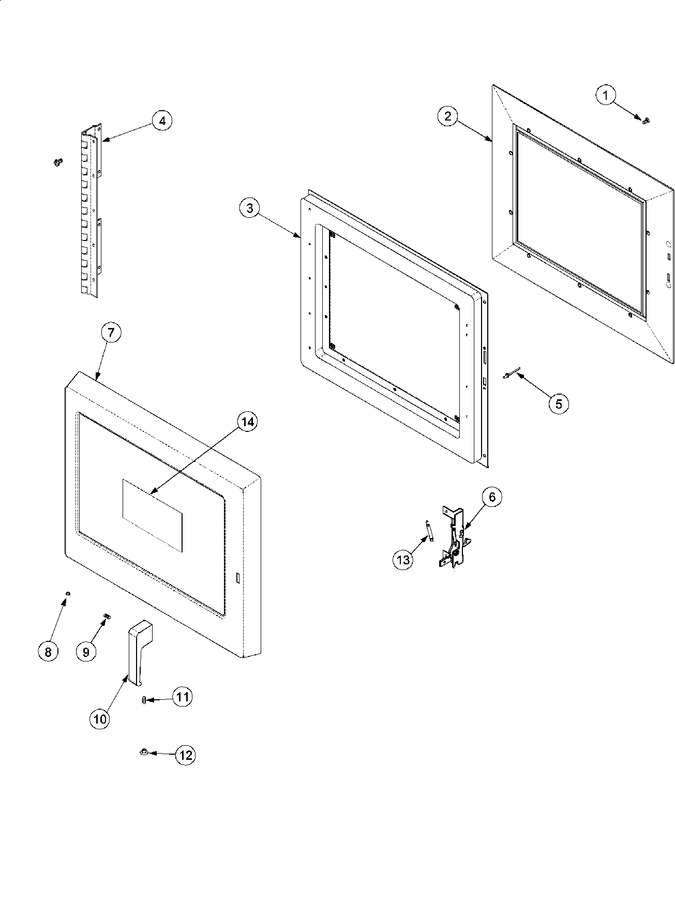

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | M0232218 | Screw,hi/lo Y Drive |
|
- | |||||
| 001 | NLA | Magnetic Y-drive Bit |
|
- | |||||
| 002 | D7784901 | Inner Door/glass Assy |
|
- | |||||
| 003 | D7683719 | Weldment-inner Door (blk) |
|
- | |||||
| 004 | C8961811 | Hinge-door |
|
- | |||||
| 004 | WP3388228 | Screw Xxx (Replaces: M0216703) |
|
$ 6.26 | |||||
| 005 | A4539601 | Pop Rivet |
|
- | |||||
| 006 | 12002757 | Latch Kit (Replaces: R0000282) |
|
$ 116.60 | |||||
| 007 | R0156920 | Outer Door/lens Retainer Assy |
|
- | |||||
| 008 | M0310305 | Plug, Button (wht) |
|
- | |||||
| 009 | 5051032202 | Set Screw No.10 X .25 |
|
- | |||||
| 010 | 12490901 | Handle, Door |
|
- | |||||
| 011 | M0208342 | Screw, Set |
|
- | |||||
| 012 | 12360701 | Plug-hole (blk) |
|
- | |||||
| 013 | C8893502 | Spring, Door Latch |
|
- | |||||
| 014 | 10432501 | Menu Panel |
|
- |
