SELECT A DIAGRAM

01 - Outercase


02 - Door


03 - Blower


04 - Control


05 - Electrical Components


06 - Cavity


07 - Cavity


08 - Supplemental Information


09 - Wiring Information

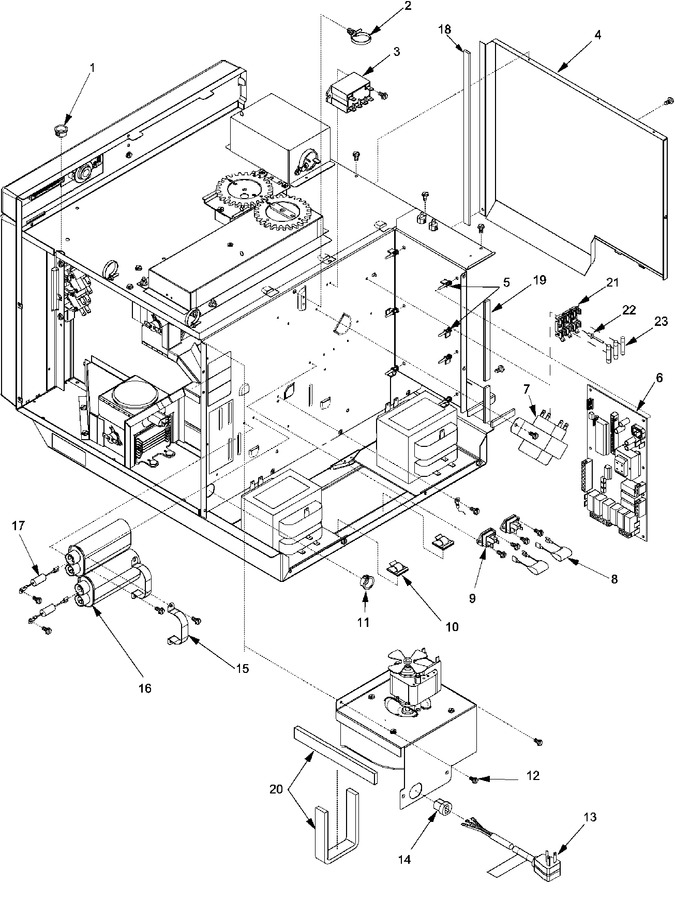

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	12164101		Grommet-rubber		Appelez-nous	-
002	M0322202		Tie Wire		Appelez-nous	-
003	12492202		Relay		Appelez-nous	-
004	10781901		Duct, Exhaust		Appelez-nous	-
004	M0231617		Screw,tf		Appelez-nous	-
005	M0590602		Support P-c Bd A		Appelez-nous	-
006	12559102Q		Net-board,hv Amana Prog		Appelez-nous	-
006	59001124		Net-board,hv Amana Prog-dq		Appelez-nous	-
007	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
007	C8901509		Transformer-auto		Appelez-nous	-
008	10172901Q		Snubber Assembly		Appelez-nous	-
009	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
009	D7681501		Triac				$ 44.05
010	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
011	A3293504		Bushing, Snap		Appelez-nous	-
012	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
013	R0131016		Power Cord Kit		Appelez-nous	-
014	M0370003		Strain Relief		Appelez-nous	-
015	A4055406		Strap, Capacitor		Appelez-nous	-
015	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
016	12548806		Capacitor-.82		Appelez-nous	-
016	59001651		Capacitor-.82   (Replaces: D8547941)				$ 43.15
017	WP13091701		Rectifier   (Replaces: B8383102)				$ 31.71
017	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 7.09
018	A3030301		Gasket (inch)		Appelez-nous	-
019	A3030301		Gasket (inch)		Appelez-nous	-
020	A3030303		Gasket (per Foot)		Appelez-nous	-
021	12136502		Block-3 Pole Fuse		Appelez-nous	-
022	A4539601		Pop Rivet		Appelez-nous	-
023	WPM0805102		Fuse 15 Amp   (Replaces: M0805102)				$ 21.25

    View Diagram in Separate Window       Print Part List
