SELECT A DIAGRAM

01 - Cover


02 - Dry Cab,drm,htr

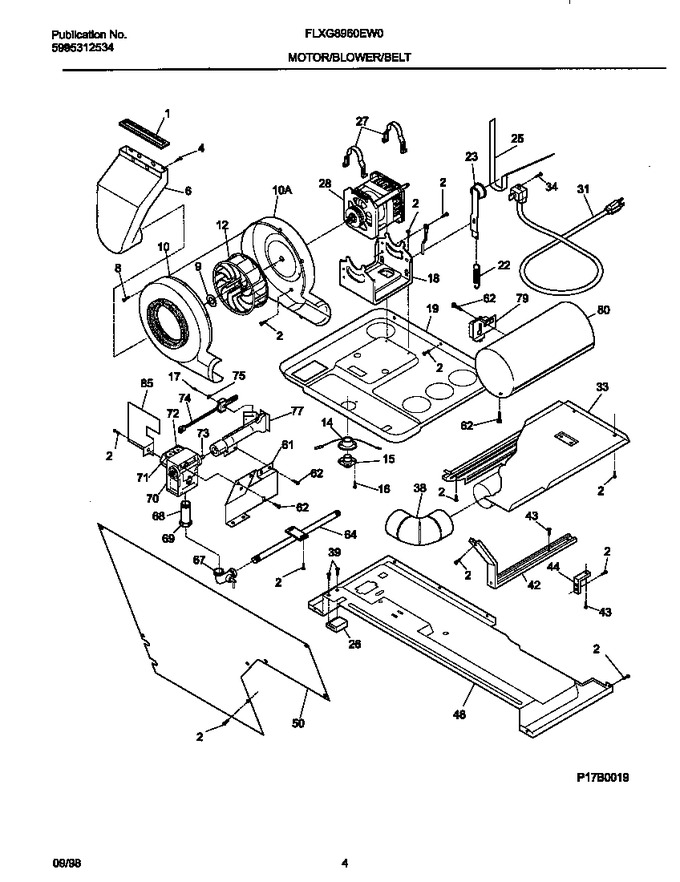

03 - Dry Mtr,belt


04 - Control Panel


05 - Wshr Cab,top


06 - Wshr Mtr,hose


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131295200		Seal-air Duct				$ 16.30
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
4	131362400		Fastener				$ 9.41
6	5304521121		Duct-air   (Replaces: 131730500)				$ 118.56
8	3205245		Screw-blower Hsg, Pph Ab St/z/ch, 6-18 X .60		Appelez-nous	-
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 32.09
10	5304485558		Asmy,frt Blwr Hsg & Seal   (Replaces: 131784500)			Immediately	$ 141.75
10	131575200		Housing-blower, Rear		Appelez-nous	-
12	131476300		Wheel-blower			Immediately	$ 47.00
14	131658101		Thermostat-heater				$ 41.68
15	5303210275		Thermostat-control		Appelez-nous	-
16	3204308		Screw-thermostat, Pph Cup Pt, 8-18 X .625		Appelez-nous	-
17	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 13.46
18	131367101		Cradle, Motor		Appelez-nous	-
19	131363901		Pan-motor Cradle		Appelez-nous	-
22	3205241		Spring-idler				$ 75.83
23	5304507499		Arm-idler & Pulley   (Replaces: 131623300)			Immediately	$ 42.66
25	137292700		Belt-dryer   (Replaces: 5303283287)			Immediately	$ 9.34
26	5303212870		Block-support		Appelez-nous	-
27	131419800		Clamp-motor				$ 8.18
28	5303937189		Motor & Pulley   (Replaces: 131542900)			Immediately	$ 294.28
31	131649800		Cord-power		Appelez-nous	-
33	131731410		Shield-access		Appelez-nous	-
34	134154100		Screw-grnd Cab,hex Wshr Hd,10-32t X 0.375,serrate   (Replaces: 131301100)				$ 13.46
38	3204320		Elbow-exhaust		Appelez-nous	-
39	131205100		Screw,8 Pan Head ,10-10b X 0.50 ,cr/sq Drive			Immediately	$ 14.18
42	3204324		Bracket-marriage		Appelez-nous	-
43	131751500		Screw 12-24 X .63 Hex Hd				$ 9.50
44	3204326		Bracket-external				$ 43.24
48	131731300		Pan-bottom		Appelez-nous	-
50	3204329		Cover-safety				$ 40.16
61	5303207404		Bracket-gas Valve		Appelez-nous	-
62	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
64	5303207405		Pipe		Appelez-nous	-
67	131498500		Valve-shut Off		Appelez-nous	-
68	5362791200		Union-male Connector, Brass				$ 52.98
69	08015194		Nut-union, Hex		Appelez-nous	-
70	5303207409		Valve Gas				$ 433.76
71	5300622602		Coil-secondary		Appelez-nous	-
72	5308015680		Coil-booster		Appelez-nous	-
73	5303211036		Orifice-natural Gas		Appelez-nous	-
74	5303937186		Ignitor Assy   (Replaces: 5303281151)				$ 80.61
75	3201209		Washer		Appelez-nous	-
77	131637400		Burner Assy		Appelez-nous	-
79	5303281135		Sensor			Immediately	$ 102.06
80	5303207413		Tube-burner		Appelez-nous	-
85	5303212889		Shield-heat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
