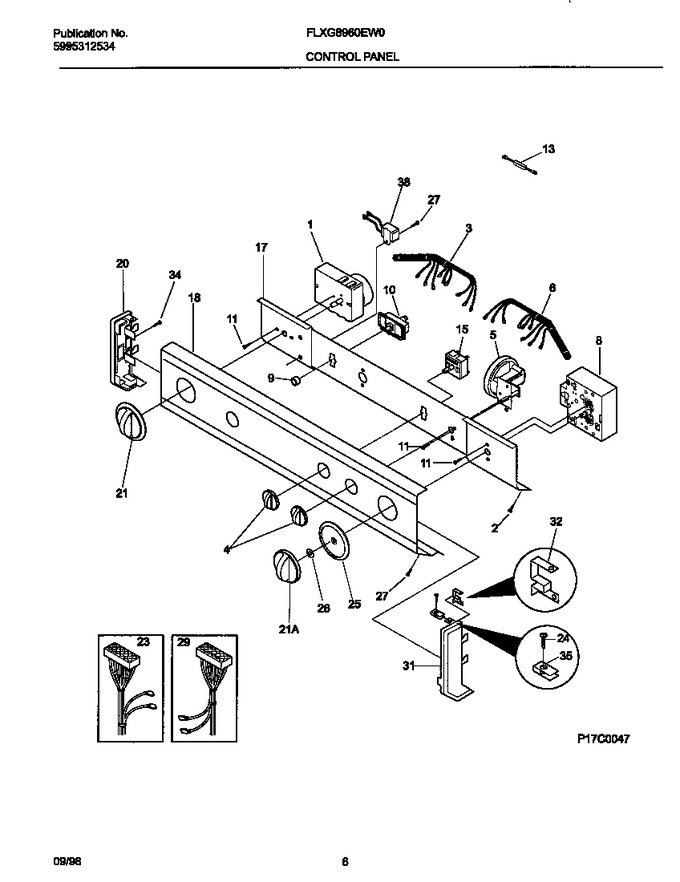

04 - Control Panel


05 - Wshr Cab,top


06 - Wshr Mtr,hose


07 - Transmission


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	131062400		Timer-dryer				$ 329.81
2	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
3	131343300		Harness-dryer Cont.		Appelez-nous	-
4	131873401		Knob-rotary-white   (Replaces: 131168101)				$ 49.73
5	134422700		Switch-pressure 3/4 Hp   (Replaces: 131692100)			Immediately	$ 98.06
6	131668500		Harnes-cont Wshr		Appelez-nous	-
8	131437400		Timer-washer				$ 254.35
9	131111501		Button-start Switch,white				$ 13.79
10	131628900		Switch-push Start				$ 55.80
11	218359202		Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming   (Replaces: 5303283289)				$ 10.63
13	3205877		Resistor, 3.0k				$ 51.14
15	131620800		Switch-temperature		Appelez-nous	-
17	131712602		Bracket-control		Appelez-nous	-
18	131623000		Panel-control, White		Appelez-nous	-
20	131288101		End Cap,white ,lh				$ 53.02
21	131167601		Knob-timer Washer, White				$ 54.95
21	131873304		Knob-dryer Timer, White   (Replaces: 131167801)			Immediately	$ 59.54
23	131666100		Harness-wiring Control Dryer		Appelez-nous	-
24	134156200		Screw, Flat Head, 8-18ab X 0.44, Cr/sq Drive   (Replaces: 131209600)			Immediately	$ 14.89
25	131167701		Dial-timer-white				$ 61.81
26	3205248		Spacer-timer-shaft				$ 13.02
27	3205253		Screw-end Cap, Pph B, 6-20 X .375		Appelez-nous	-
29	131654700		Harness-washer		Appelez-nous	-
31	131288211		End Cap, White, Rh				$ 64.79
32	3204357		Clip-grounding				$ 60.11
34	131243700		Screw,pan Head ,8-18ab X 0.375 ,39 ,cr/sq Drive				$ 3.36
35	5308014350		Clip-end Cap		Appelez-nous	-
38	5303286537		Buzzer				$ 93.61
*96760	131209800		Clamp-sw. Pressure				$ 65.92
*96761	5304464772		Strap   (Replaces: 5303161300)				$ 10.63
