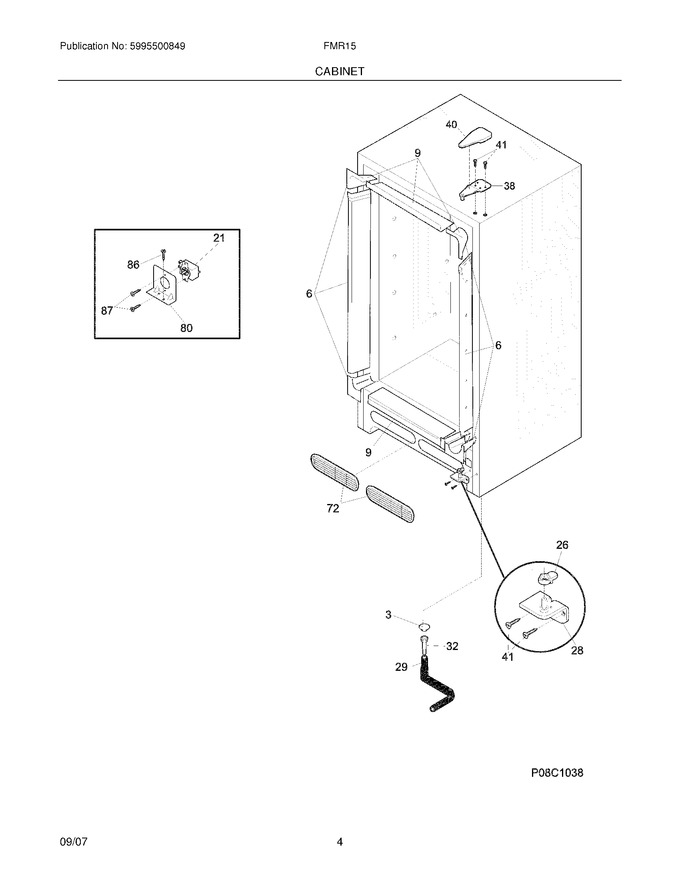

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216604400		Breaker Kit W/corners		Appelez-nous	-
9	216603400		Breaker Kit W/corners,22.13`` Long ,top Or Bottom		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 8.82
28	297132700		Hinge,bottom ,rh				$ 47.87
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 15.90
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
38	216939100		Hinge-upper				$ 59.54
40	216809001		Cover-upper Hinge,black				$ 13.70
41	216936801		Screw-hinge,12-24x.700 Hwh				$ 11.87
72	216952701		Grille/guard,black ,(2)				$ 28.76
80	297044800		Bracket,cold Control		Appelez-nous	-
86	216707700		Screw,8-18 X 1/2		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
F21	216710600		Control-temperature				$ 114.08
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	125963-48		Insulation,24`` ,drain Tube   (Replaces: 297001704)			Immediately	$ 59.16
