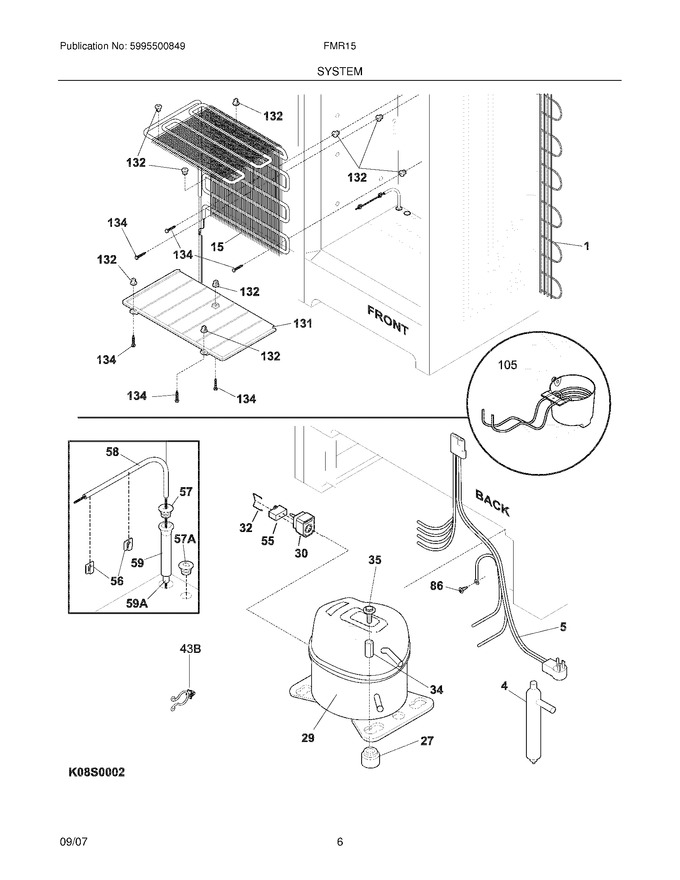

07 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	216954200		Controller,compressor ,5 Speed				$ 63.79
32	216954300		Clip,controller				$ 17.01
34	5306594529		Sleeve-compressor				$ 10.34
35	5304460607		Screw,ind Hex Sems ,1/4-28 Unfx ,compressor		Appelez-nous	-
55	297286812		Capacitor,run ,10mf   (Replaces: 216985000)			Immediately	$ 11.78
56	216611700		Clip,plastic ,temp Sensor Mtg ,snap-in		Appelez-nous	-
57	297014500		Plug-suction Line		Appelez-nous	-
58	216611600		Tube,control Well		Appelez-nous	-
59	216502500		Sleeve,suction Line				$ 10.85
86	216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca				$ 13.65
105	216999902		Drain-cup Assy,3/16``		Appelez-nous	-
131	216701100		Pan-drain,evap Drip Pan		Appelez-nous	-
132	216225700		Grommet-spacer				$ 7.77
134	216138900		Screw,hex Sems ,8-18ab X 1.00 ,evap				$ 3.31
43B	297315800		Clip   (Replaces: 297048400)				$ 10.13
57A	216711001		Plug,white ,plug Evap		Appelez-nous	-
59A	216341800		Seal-cap		Appelez-nous	-
F1	5300123788		Condenser				$ 635.80
F15	297175900		Evaporator Kit				$ 293.24
F29	5304507767		Compressor,w/o Electricals   (Replaces: 216966300)				$ 726.41
F4	5303305677		Drier-filter   (Replaces: 216938600)			Immediately	$ 31.67
F5	297182200		Harness-main,w/housing Recpl		Appelez-nous	-
NI	216970600		Heat Exchanger,suction Line				$ 356.46
NI	05878556		Clip-cord		Appelez-nous	-
NI	216533200		Wire-ground		Appelez-nous	-
NI	216707700		Screw,8-18 X 1/2		Appelez-nous	-
NI	216707701		Screw,8-18 X 1/2		Appelez-nous	-
NI	216858000		Screw,thno.8-18x.500ab,no.10		Appelez-nous	-
NI	5303208622		Clip Grounding		Appelez-nous	-
