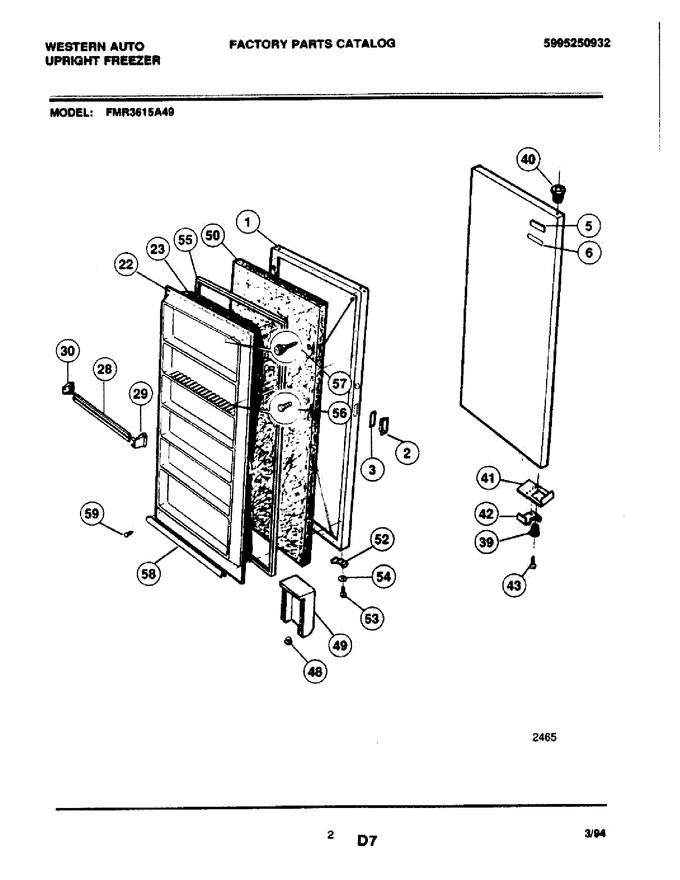

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	216011401		Panel-door-white		Appelez-nous	-
2	216140200		Handle-white		Appelez-nous	-
3	08009392		Gasket Handle		Appelez-nous	-
5	215366301		Frame-nameplate		Appelez-nous	-
6	216284703		Insert Nameplate		Appelez-nous	-
22	216048706		Panel-inside Door		Appelez-nous	-
23	09950831		Insulation		Appelez-nous	-
28	216110600		Shelf Front-narrow (5)		Appelez-nous	-
29	5303925377		End Cap-rh-narrow (5)   (Replaces: 216257600)			Immediately	$ 46.07
30	5303925377		End Cap-lh-narrow (5)   (Replaces: 216257700)			Immediately	$ 46.07
39	5303210403		Bearing, Bottom		Appelez-nous	-
40	5303297490		Bearing, Top		Appelez-nous	-
41	5300091170		Reinforcement, Door Stop		Appelez-nous	-
42	08016354		Door Stop				$ 36.07
43	08005520		Screw-door Stop		Appelez-nous	-
48	5309950074		Valve, Breather				$ 12.48
49	5303212700		Air Duct Breather		Appelez-nous	-
50	5303007739		Insulation, Door		Appelez-nous	-
51	08037953		Wire Adjusting		Appelez-nous	-
52	05879859		Bracket		Appelez-nous	-
53	5303302716		Screw		Appelez-nous	-
54	09950839		Washer, Bracket		Appelez-nous	-
55	3206246		Gasket Door (white)				$ 238.51
56	216858001		Screw Door Panel (26)   (Replaces: 5303161215)			Immediately	$ 10.85
57	216022800		Screw		Appelez-nous	-
58	5303300817		Gasket-white		Appelez-nous	-
59	5303212828		Clip, Gasket (5)				$ 16.63
