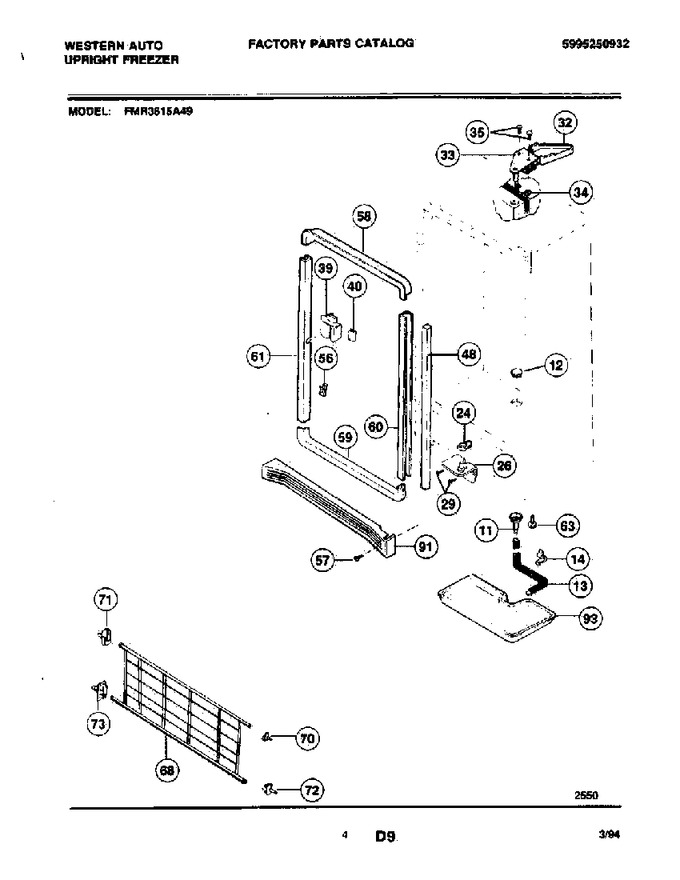

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
12	5306593887		Plug-drain		Appelez-nous	-
13	216269600		Hose-drain		Appelez-nous	-
14	216273000		Clamp-drain Hose				$ 22.42
24	5303210424		Ramp, Door Closer		Appelez-nous	-
26	216247400		Hinge-bottom		Appelez-nous	-
29	154518001		Screw   (Replaces: 5303205738)				$ 10.54
32	5303212912		Cover, Hinge-white		Appelez-nous	-
33	5303925086		Hinge, Top		Appelez-nous	-
34	5303294372		Insert, Nut				$ 43.68
35	5303212937		Screw-top Hinge		Appelez-nous	-
39	216013600		Support, Lock		Appelez-nous	-
40	216013700		Clip Lock		Appelez-nous	-
47	09950831		Insulation		Appelez-nous	-
56	06594680		Clip, Breaker		Appelez-nous	-
57	5303302714		Screw		Appelez-nous	-
58	216073300		Breaker Top		Appelez-nous	-
59	216073200		Breaker Bottom		Appelez-nous	-
60	216108600		Breaker-hinge		Appelez-nous	-
61	216108701		Breaker, Lock Side		Appelez-nous	-
63	205363701		Leveling Leg Adj		Appelez-nous	-
68	216250200		Drop Front		Appelez-nous	-
70	06599973		Support, Top Rh				$ 6.49
71	06599974		Support, Top Lh		Appelez-nous	-
72	06599975		Support, Bottom Rh				$ 5.99
73	06599976		Support, Bottom Lh		Appelez-nous	-
91	216294300		Grille/kickplate		Appelez-nous	-
	216269500		Adapter-hose (non-illustrated)				$ 14.81

    View Diagram in Separate Window       Print Part List
