Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 10851701Q Assy,basepan Appelez-nous -
12 WP67002552 Bulb, Light(240)   (Replaces: A0282802) In-Stock Immediately $ 10.58

21 10788609 Transformer-hv 230v 50 Hz Appelez-nous -
22 B8376801 Socket, Light Appelez-nous -
31 10489402 Magnetron-t Appelez-nous -
32 10999602 Brkt-lamp Cover Appelez-nous -
41 10999501 Brkt-tco Mtg Appelez-nous -
42 B5684102 Thermal Protector Appelez-nous -
51 M0229916 Screw T.c Appelez-nous -
52 B5684119 Cutout-thermal Appelez-nous -
61 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

62 M0232012 Screw Appelez-nous -
71 WP489128 Screw   (Replaces: M0220417) Special Order $ 9.79

72 67006425 Screw, Sm   (Replaces: M0238616) In-Stock Immediately $ 6.26

82 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 7.04

92 B8376701 Bracket, Light Appelez-nous -
102 WP489349 Screw   (Replaces: M0216515) In-Stock Immediately $ 7.09

112 WP59002061 Screwxxx   (Replaces: M0216616) Special Order $ 6.98

122 10999601 Brkt, Lamp Cover Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

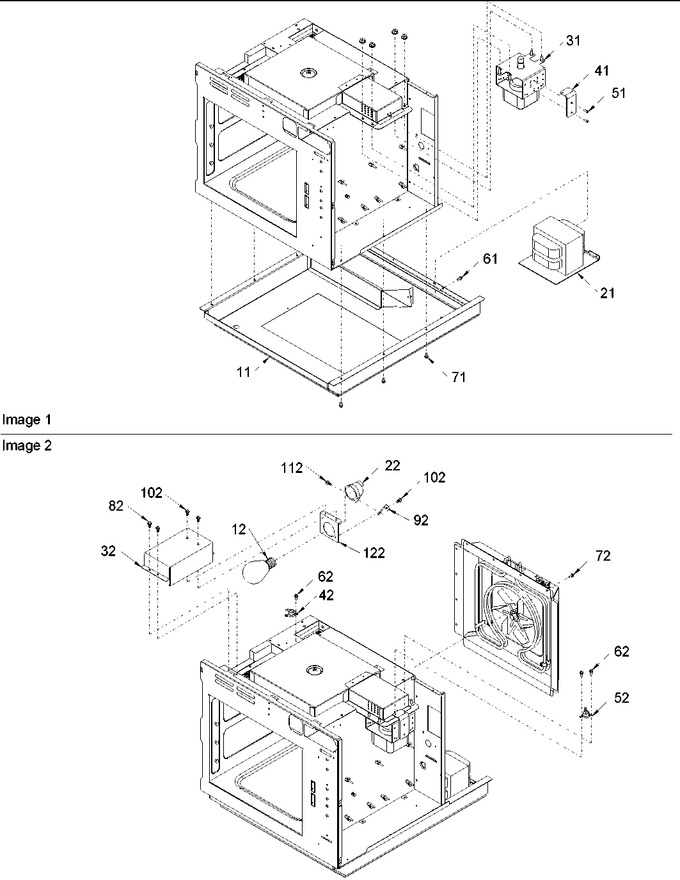

Diagram for DS30E (BOM: P1325903M)
