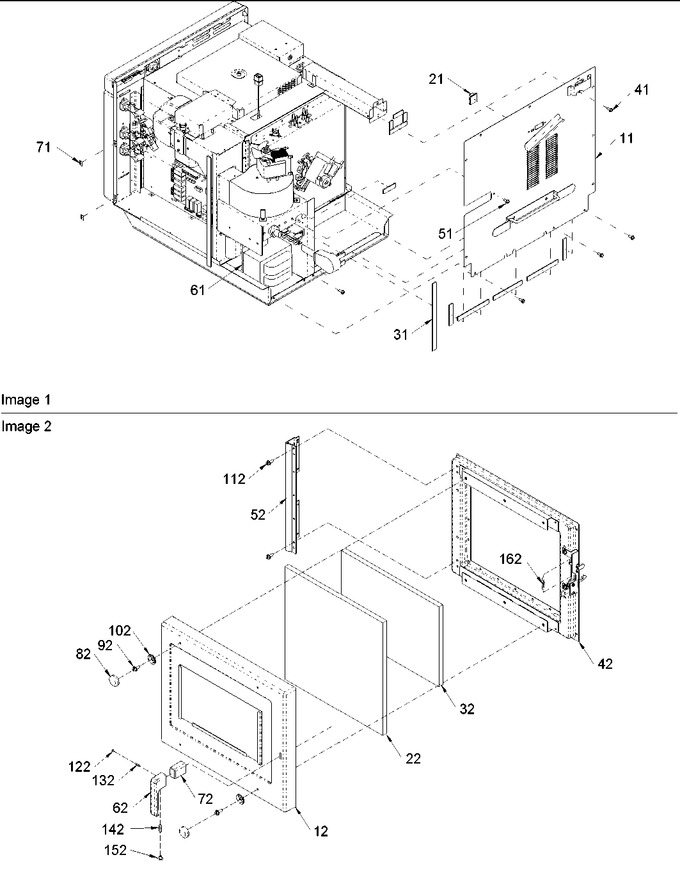

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12002804		Access Pan Weld (blk)		Appelez-nous	-
12	12162511		Door,outer		Appelez-nous	-
12	12162510		Door, Outer		Appelez-nous	-
21	WPM0104106		Clip   (Replaces: M0104106)				$ 7.00
22	12474902		Insulation, Door-large		Appelez-nous	-
32	12474901		Insulation, Door-small		Appelez-nous	-
41	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 7.04
42	R0000498		Kit-inner Door W\caps & Choke		Appelez-nous	-
51	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
52	59001512		Hinge-door		Appelez-nous	-
61	M02325501		Insulator-pod		Appelez-nous	-
62	12490902		Door Handle		Appelez-nous	-
71	M0287001		Nut-speed		Appelez-nous	-
72	12576901		Insert,handle		Appelez-nous	-
82	M0295501		Cap, Screw		Appelez-nous	-
92	5145-E		No.8 Ab X 1/2`` Crow Foot Hd Scr		Appelez-nous	-
102	M0295502		Washer, Cap Screw		Appelez-nous	-
112	WP3388228		Screw Xxx   (Replaces: M0216703)				$ 6.26
122	12360703		Plug, Button (blk)		Appelez-nous	-
132	M0208943		Set Screw		Appelez-nous	-
142	M0206943		Set Screw		Appelez-nous	-
152	M0310305		Plug, Button (wht)		Appelez-nous	-
162	59001721		Spring-door Latch		Appelez-nous	-
172	12577101		Harness,wiring		Appelez-nous	-
