Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303208910 Panel-manifold Appelez-nous -
1 3051133 Drawer Body Appelez-nous -
2 3051163 Glide-drawer In-Stock Immediately $ 19.41

2 3204879 Knob - Valve Top (4) Appelez-nous -
4 3013818 Rod-main Support (2) Appelez-nous -
4 3206424 Handle Appelez-nous -
5 3131975 Shield-panel Appelez-nous -
5 3051354 Trim, Main Top, Lh Appelez-nous -
6 3131387 Fstnr-space Appelez-nous -
6 3051355 Bracket - Main Top Rh Appelez-nous -
7 3131287 Bracket-main Top Rh Appelez-nous -
8 3131286 Bracket-main Top Lh Appelez-nous -
9 3131299 Pan Burner Appelez-nous -
10 3018432 Grate - Top (gray) (4) Appelez-nous -
*38790 3131903 Bumper Special Order $ 55.36

*38790 3013964 Screw (2) Appelez-nous -
*38790 5303051818 Screw (4) Appelez-nous -

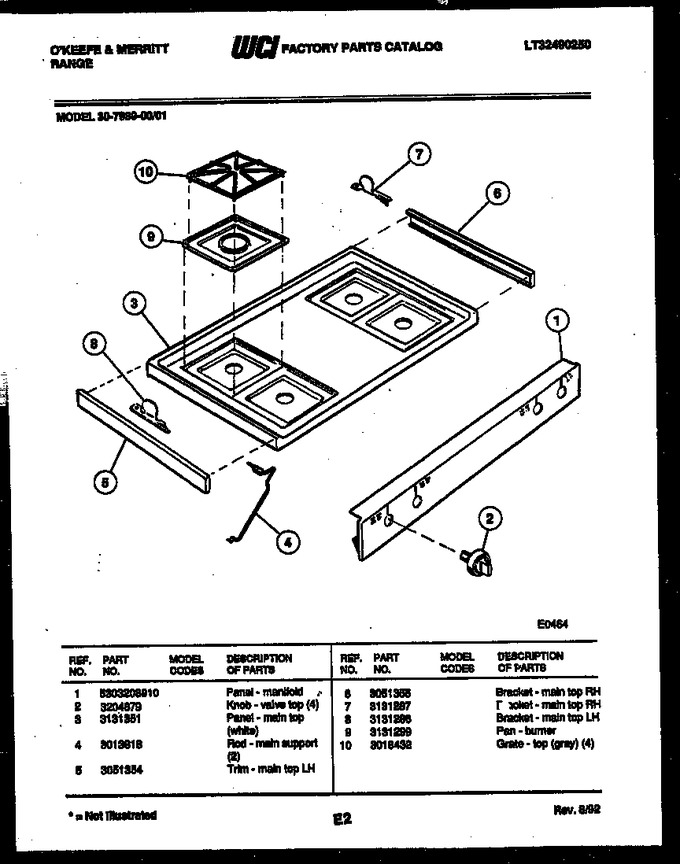

    View Diagram in Separate Window     Print Icon   Print Part List
