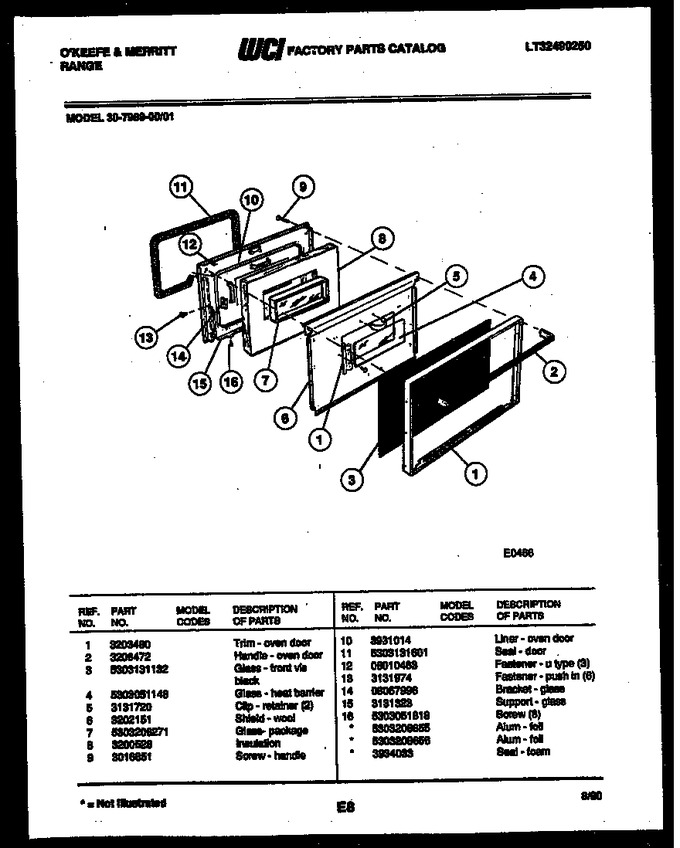

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3203480 | Trim, Oven Door |
|
- | |||||
| 2 | 3206472 | Handle - Oven Door |
|
- | |||||
| 3 | 5303131132 | Glass-front (vis Black) |
|
- | |||||
| 4 | 5303051148 | Glass, Heat Barrier |
|
- | |||||
| 5 | 3131720 | Clip, Retainer (2) |
|
- | |||||
| 6 | 3202151 | Shield, Wool |
|
- | |||||
| 7 | 5303206271 | Glass Package |
|
- | |||||
| 8 | 3200528 | Insulation |
|
- | |||||
| 9 | 3016851 | Screw-handle |
|
- | |||||
| 10 | 3931014 | Liner-oven Door |
|
- | |||||
| 11 | 5303131601 | Seal, Door |
|
$ 374.63 | |||||
| 12 | 08010463 | Fastener-clip |
|
- | |||||
| 13 | 3131974 | Fastener, Push In (6) |
|
- | |||||
| 14 | 08067996 | Bracket-glass |
|
- | |||||
| 15 | 3131323 | Support, Glass |
|
- | |||||
| 16 | 5303051818 | Screw (8) |
|
- | |||||
| *38808 | 5303208655 | Alum Foil |
|
- | |||||
| *38809 | 5303208656 | Alum Foil |
|
- | |||||
| *38809 | 3934033 | Seal, Foam |
|
- |
