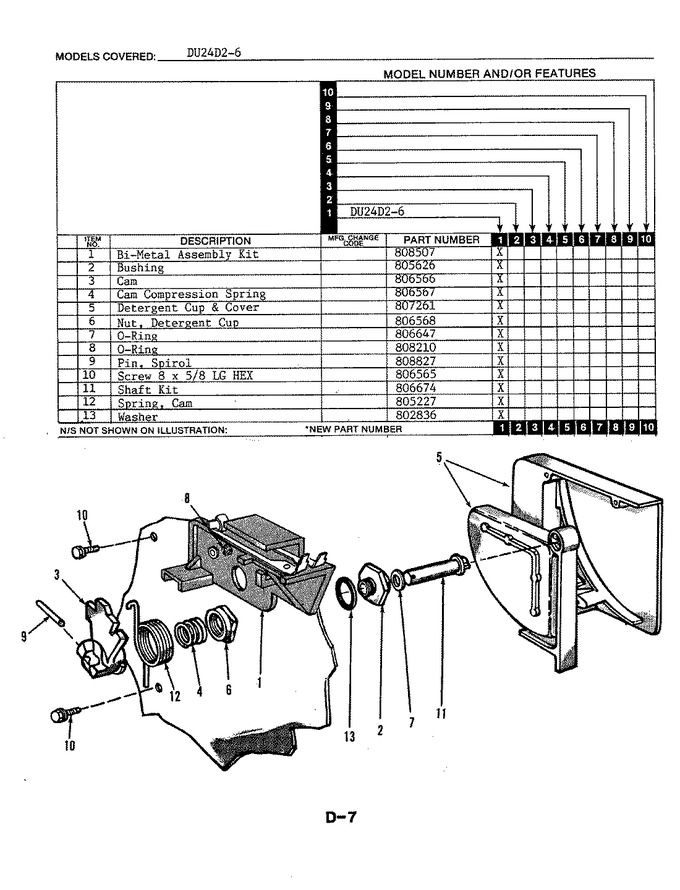

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Control Panel (du24d2a)
02 - Detergent Cup (du24d2a)
03 - Door (du24d2a)
04 - Frame Parts (du24d2a)
05 - Motor & Pump (du24d2a)
06 - Rack (du24d2a)
07 - Tub (du24d2a)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 807261 | Detrg Cup Kit |
|
- | |||||
| 2 | 808210 | O Ring |
|
$ 0.42 | |||||
| 3 | 806565 | Screw |
|
- | |||||
| 4 | 154180301 | Cam (Replaces: 806566) |
|
$ 32.84 | |||||
| 5 | 808827 | Roll Pin |
|
- | |||||
| 6 | 805227 | Spring |
|
- | |||||
| 7 | 806567 | Spring |
|
- | |||||
| 8 | 806568 | Nut |
|
- | |||||
| 9 | 808507 | Det Cup Trigger |
|
- | |||||
| 10 | 802836 | Gasket |
|
- | |||||
| 11 | 805626 | Bushing |
|
- | |||||
| 12 | 806647 | O Ring |
|
- | |||||
| 13 | 806674 | Shaft Kit |
|
- |
