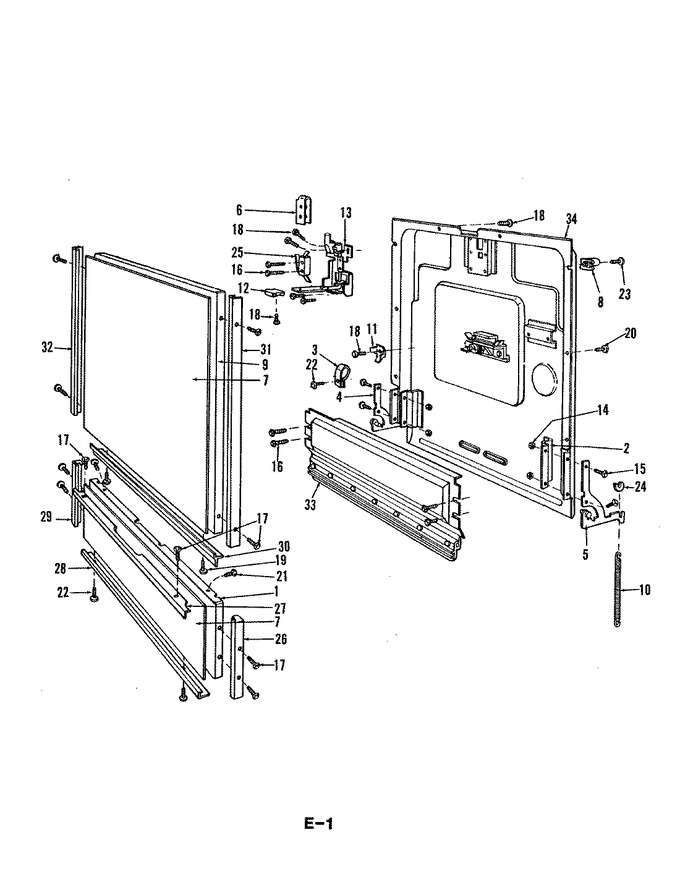

03 - Door (du24d2a)
04 - Frame Parts (du24d2a)
05 - Motor & Pump (du24d2a)
06 - Rack (du24d2a)
07 - Tub (du24d2a)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805683 | Door Spring |
|
- | |||||
| 2 | 805681 | Rh Arm |
|
- | |||||
| 3 | 803311 | Screw |
|
- | |||||
| 4 | 805884 | Spring Pad |
|
- | |||||
| 5 | COMM PART | Arm Bracket (Replaces: 806717) |
|
- | |||||
| 6 | M0282009 | Locknut (Replaces: 808470) |
|
$ 12.06 | |||||
| 7 | 806967 | Screw |
|
- | |||||
| 8 | 807449 | Door Guide |
|
- | |||||
| 9 | 808749 | Screw |
|
- | |||||
| 10 | 807191 | Inner Panel |
|
- | |||||
| 11 | 806894 | Screw |
|
- | |||||
| 12 | 807016 | Latch Asm |
|
- | |||||
| 13 | 807450 | Switch Cover |
|
- | |||||
| 14 | 806830 | Screw |
|
- | |||||
| 15 | 807043 | Switch |
|
- | |||||
| 16 | 808618 | Screw |
|
- | |||||
| 17 | 806398 | Latch Knob |
|
- | |||||
| 18 | 808977 | Door Trim |
|
- | |||||
| 19 | 808976 | Door Trim |
|
- | |||||
| 20 | 807262 | Outer Panel |
|
- | |||||
| 21 | 808404 | Panel Insert |
|
- | |||||
| 22 | 808442 | Wire Clamp |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 803416) |
|
Immediately | $ 12.62 | ||||
| 24 | 807213 | Ground Terminal |
|
- | |||||
| 25 | 805682 | Lh Arm |
|
- | |||||
| 26 | 806810 | Screw |
|
- | |||||
| 27 | 5300809243 | Vent Baffle (Replaces: 809122) |
|
$ 20.25 | |||||
| 28 | WP74004005 | Screw (Replaces: 807293) |
|
$ 6.95 | |||||
| 29 | COMM PART | Door Trim (Replaces: 807347) |
|
- | |||||
| 30 | 807501 | Screw |
|
- | |||||
| 31 | WP90767 | Screw (Replaces: 808658) |
|
Immediately | $ 7.04 | ||||
| 32 | 809108 | Access Panel |
|
- | |||||
| 33 | 808346 | Acc Pnl Trim |
|
- | |||||
| 34 | 808028 | Rh Trim |
|
- | |||||
| 35 | 808027 | Bottom Trim |
|
- | |||||
| 36 | 808029 | Lh Trim |
|
- |
