Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 807261 Detrg Cup Kit Appelez-nous -
2 808210 O Ring Special Order $ 0.42

3 806565 Screw Appelez-nous -
4 154180301 Cam   (Replaces: 806566) Special Order $ 32.84

5 808827 Roll Pin Appelez-nous -
6 805227 Spring Appelez-nous -
7 806567 Spring Appelez-nous -
8 806568 Nut Appelez-nous -
9 808507 Det Cup Trigger Appelez-nous -
10 802836 Gasket Appelez-nous -
11 805626 Bushing Appelez-nous -
12 806647 O Ring Appelez-nous -
13 806674 Shaft Kit Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

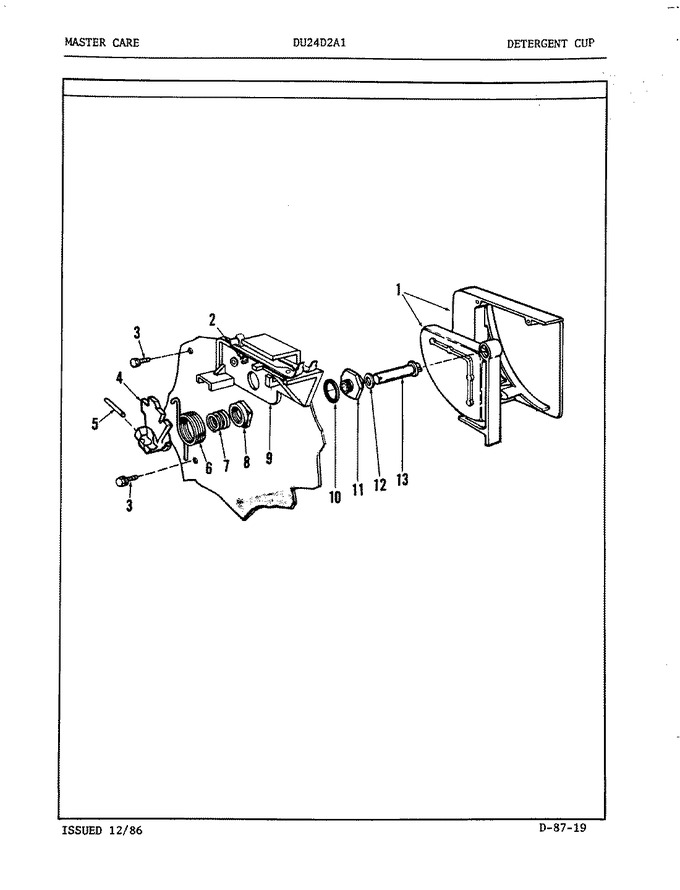

Diagram for DU24D2A1
