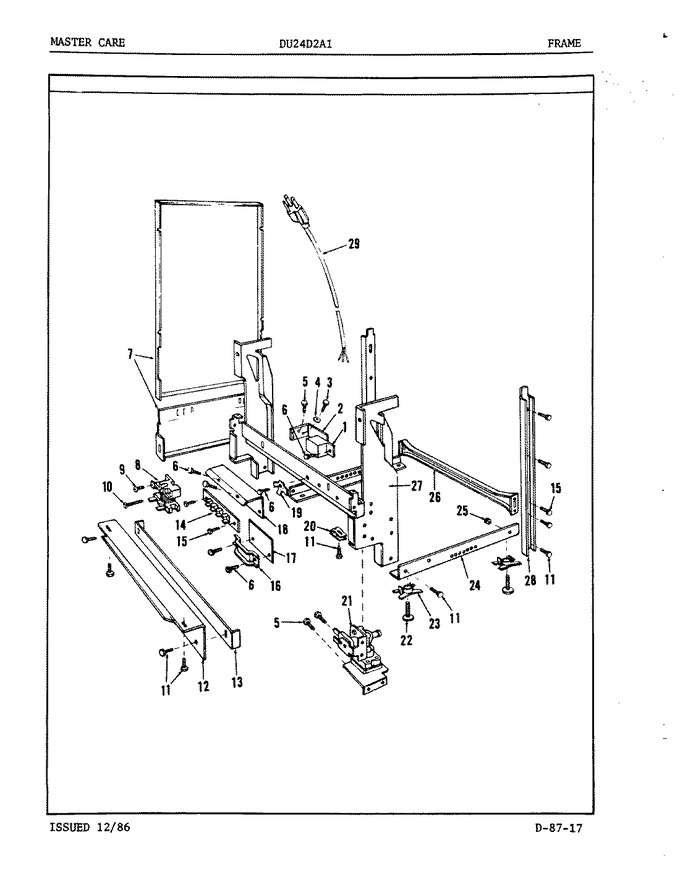

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800222		Terminal Cover		Appelez-nous	-
2	807019		Bracket		Appelez-nous	-
3	807951		Screw		Appelez-nous	-
4	807373		Washer		Appelez-nous	-
5	807950		Screw		Appelez-nous	-
6	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
7	808880		Side Panel Kit		Appelez-nous	-
7	808883		Side Panel Kit		Appelez-nous	-
7	808884		Side Panel Kit		Appelez-nous	-
7	808881		Side Panel Kit		Appelez-nous	-
7	808882		Side Panel Kit		Appelez-nous	-
8	805255		Relay		Appelez-nous	-
9	WP488234		Screw   (Replaces: 806593)				$ 6.07
10	804672		Screw		Appelez-nous	-
11	807001		Screw		Appelez-nous	-
12	807850		Toe Plate		Appelez-nous	-
13	806295		Toe Plate		Appelez-nous	-
14	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
15	807501		Screw		Appelez-nous	-
16	806723		Clamp		Appelez-nous	-
17	809144		Wire Shield		Appelez-nous	-
18	807849		Bracket		Appelez-nous	-
19	807213		Ground Terminal		Appelez-nous	-
20	808170		Speednut		Appelez-nous	-
21	809240		Water Valve		Appelez-nous	-
22	807672		Leveler		Appelez-nous	-
23	807671		Teenut		Appelez-nous	-
24	807851		Side Channel		Appelez-nous	-
25	M0282005		Nut   (Replaces: 804619)				$ 7.07
26	807852		Rear Brace		Appelez-nous	-
27	807848		Hinge		Appelez-nous	-
28	808670		Support Channel		Appelez-nous	-
29	808395		Cord Kit		Appelez-nous	-
