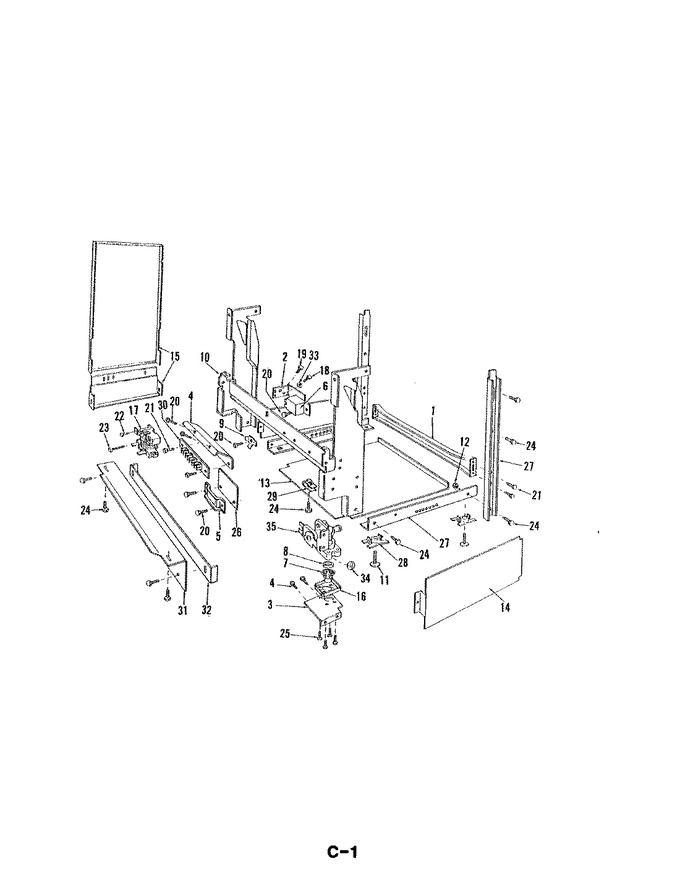

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	807852		Rear Brace		Appelez-nous	-
2	807019		Bracket		Appelez-nous	-
3	807613		Valve Bracket		Appelez-nous	-
4	807849		Bracket		Appelez-nous	-
5	806723		Clamp		Appelez-nous	-
6	800222		Terminal Cover		Appelez-nous	-
7	808337		Fitting		Appelez-nous	-
8	806100		Gasket		Appelez-nous	-
9	807213		Ground Terminal		Appelez-nous	-
10	807848		Hinge		Appelez-nous	-
11	M0282005		Nut   (Replaces: 804619)				$ 7.07
12	M0282005		Nut   (Replaces: 804619)				$ 7.07
13	808434		Bottom Panel		Appelez-nous	-
14	808433		Side Panel		Appelez-nous	-
15	808882		Side Panel Kit		Appelez-nous	-
15	808880		Side Panel Kit		Appelez-nous	-
15	808883		Side Panel Kit		Appelez-nous	-
15	808881		Side Panel Kit		Appelez-nous	-
15	808884		Side Panel Kit		Appelez-nous	-
16	808458		Retainer		Appelez-nous	-
17	805255		Relay		Appelez-nous	-
18	807951		Screw		Appelez-nous	-
19	807950		Screw		Appelez-nous	-
20	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.04
21	807501		Screw		Appelez-nous	-
22	WP488234		Screw   (Replaces: 806593)				$ 6.07
23	804672		Screw		Appelez-nous	-
24	807001		Screw		Appelez-nous	-
25	808368		Screw		Appelez-nous	-
26	COMM PART		Wire Shield   (Replaces: 808013)		Appelez-nous	-
27	807851		Side Channel		Appelez-nous	-
28	807671		Teenut		Appelez-nous	-
29	808170		Speednut		Appelez-nous	-
30	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
31	807850		Toe Plate		Appelez-nous	-
32	806295		Toe Plate		Appelez-nous	-
33	807373		Washer		Appelez-nous	-
34	808432		Flow Washer		Appelez-nous	-
35	DW53		Inlet Valve Kit   (Replaces: 808668)				$ 44.41
