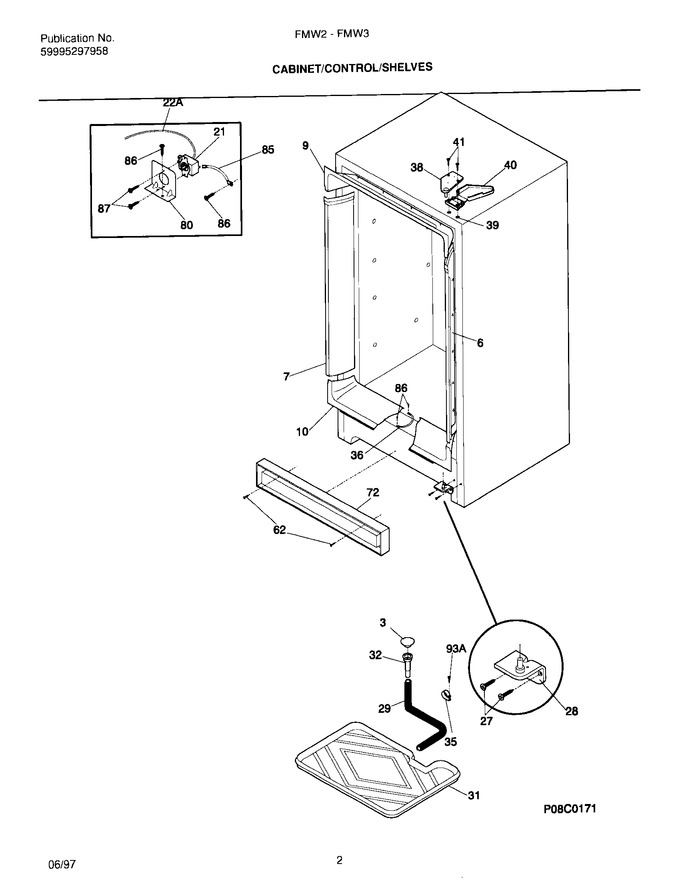

03 - Cabinet/control/shelves


05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
6	216108400		Breaker, Hinge Side		Appelez-nous	-
7	216108500		Breaker		Appelez-nous	-
9	216073300		Breaker Top		Appelez-nous	-
10	216073200		Breaker Bottom		Appelez-nous	-
21	216509100		Control-temperature		Appelez-nous	-
27	154518001		Screw-hinge, Cr, 1/4-20 X 1.000, Btm   (Replaces: 5303205738)				$ 10.54
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose-drain   (Replaces: 216313501)			Immediately	$ 15.90
31	5308016387		Pan, Drain		Appelez-nous	-
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	06594637		Clip		Appelez-nous	-
36	06594651		Wire, Ground		Appelez-nous	-
38	5303925086		Hinge-upper		Appelez-nous	-
39	5303294372		Nut Insert-hinge				$ 43.68
40	5303276520		Cover-hinge		Appelez-nous	-
41	5303212937		Screw-top Hinge		Appelez-nous	-
62	131168200		Screw, 8-18 X 0.31			Immediately	$ 14.18
72	216294305		Grille/kickplate,black		Appelez-nous	-
80	216307500		Bracket		Appelez-nous	-
85	5303301497		Wire,ground		Appelez-nous	-
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
87	08037849		Screw				$ 8.98
	09948773		Insulation, Drain Tube				$ 12.60
	06594680		Clip, Breaker		Appelez-nous	-
93A	216858001		Screw   (Replaces: 5303161215)			Immediately	$ 10.85
