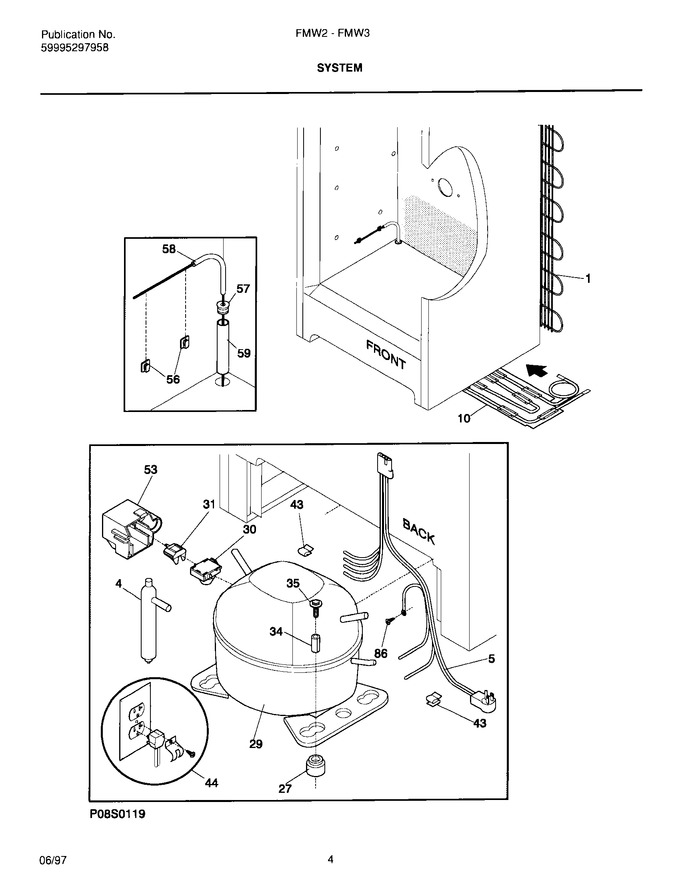

05 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
4	5303305677		Drier, Filter   (Replaces: 216099900)			Immediately	$ 31.67
5	3200801		Harness-wire		Appelez-nous	-
10	216377500		Heater-drain Pan Assy		Appelez-nous	-
27	216498900		Grommet,compressor				$ 13.01
29	5304443412		Compressor W/electricals   (Replaces: 5303925442)				$ 856.23
30	216511200		Starter-ptc		Appelez-nous	-
31	216100113		Overload Protector				$ 169.63
34	5306594529		Sleeve-compressor				$ 10.34
35	5303272328		Screw, Ind Hex Sems, 1/4, 28 Unfx, Compressor				$ 10.34
43	09950610		Clip		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
53	216347800		Cover, Compressor		Appelez-nous	-
56	216010400		Support-control Cap Tube		Appelez-nous	-
57	5303322428		Plug-suction Line		Appelez-nous	-
58	5303916855		Tube, Plastic, Clear, Sensor Sleeve				$ 60.96
59	216502500		Sleeve, Suction Line   (Replaces: 5303207297)				$ 10.85
86	216036600		Screw, Rwhd (gx, Ca), 8, 32 X 1/2		Appelez-nous	-
	5303208622		Clip Grounding		Appelez-nous	-
