SELECT A DIAGRAM

01 - Cover

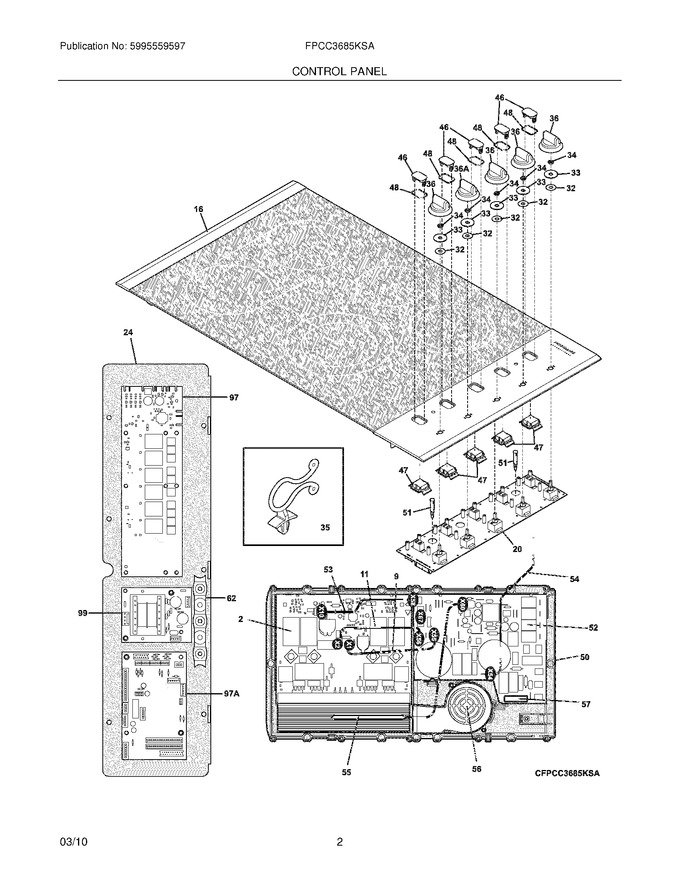

03 - Control Panel


05 - Maintop/surface Units


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	318079242		Main Top Assembly,glass ,black/stainless,w/trim & Frame				$ 543.32
24	318567500		Panel,service		Appelez-nous	-
32	318086007		Washer,flat ,(4) ,control				$ 9.93
33	318146012		Bushing,control ,(4)				$ 15.60
34	316247700		Nut,mounting				$ 18.20
35	216273000		Clip,wire Retainer				$ 22.42
36	316564609		Knob,control ,stainless ,single				$ 132.51
46	318319020		Lens,indicator Light ,(6)				$ 31.90
47	318367101		Clamp,lens ,(6)				$ 25.46
48	318337101		Gasket,o`ring ,(4)				$ 4.83
36A	316564612		Knob,control ,stainless ,dual				$ 61.06
F11	318052579		Power Cable Set,generator ,6`` ,black ,to Filter,x2/x7-x2/x56		Appelez-nous	-
F2	318347100		Generator,circuit Board ,(2) ,2 Zone				$ 512.24
F20	316543605		Board,user Interface ,rotary ,w/potentiometer				$ 320.15
F50	318329620		Housing Assembly,induction ,small ,w/electronics				$ 765.03
F51	318250409		Light,indicator ,white				$ 203.12
F52	318347010		Filter,circuit Board ,small				$ 769.61
F53	318348002		Communication Cable,generator ,8`` ,to Filter,x10/x58		Appelez-nous	-
F54	318052578		Ground Wire,x54/6		Appelez-nous	-
F55	318349910		Thermal Cut-out,long		Appelez-nous	-
F56	318346910		Cooling Fan Assembly,small				$ 679.21
F57	318373300		Fuse,fast Blow ,20a				$ 59.54
F62	5304409888		Terminal Block   (Replaces: 316056000)			Immediately	$ 26.69
F9	318052580		Power Cable Set,generator ,6`` ,blue ,to Filter,(2) ,x1/x8-x1/x55		Appelez-nous	-
F97	318388400		Board,relay				$ 235.31
F97A	316442070		Board,power ,uib				$ 209.43
F99	316435703		Board,power Supply			Immediately	$ 394.48
FNI	318402376		Harness,wiring ,main ,w/magnetic Core				$ 154.77
FNI	318532141		Ground Wire,5.5``		Appelez-nous	-
FNI	318402374		Wiring Harness,interface ,uib Board ,to Control Brd				$ 221.85
FNI	5304517813		Harness,wiring ,condensator ,w/3 Capacitors   (Replaces: 318231879)				$ 35.44
NI	5304462994		Screw,8-32 X 5/16		Appelez-nous	-
NI	5304450850		Screw,7-19 X 1/2``		Appelez-nous	-
NI	316205500		Nut-10-32   (Replaces: 5303323144)				$ 11.34
NI	5304468081		Screw,mouinting ,6-32 X 3/8 ,(18)				$ 9.92
NI	5304475957		Support,power Board ,(2)		Appelez-nous	-
NI	5304475958		Standoff,hex ,power Board ,(2)				$ 9.93
NI	5303323140		Screw,ground ,10-32 X 0.375		Appelez-nous	-
NI	08016432		Screw,truss Head,8-18 X 0.375		Appelez-nous	-
NI	5303325170		Nut,keps ,8-32 ,(2)		Appelez-nous	-
