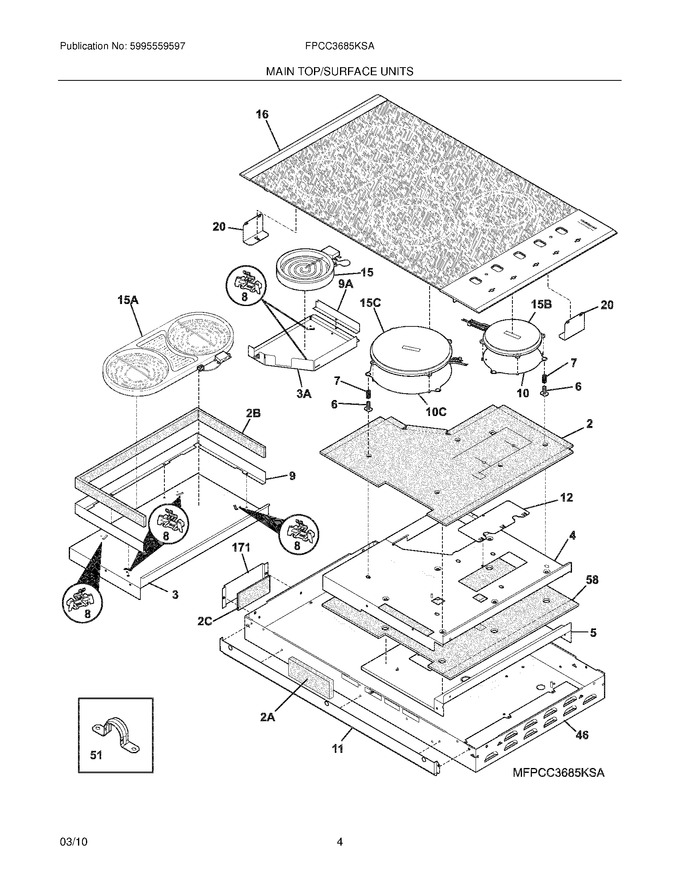

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 318330536 | Insulation,carrier Panel |
|
- | |||||
| 3 | 318567200 | Support,bridge Element |
|
- | |||||
| 4 | 318567303 | Support,element |
|
- | |||||
| 5 | 318567601 | Shield,vent |
|
- | |||||
| 6 | 318405000 | Pin,guide ,elements ,(6) |
|
$ 19.38 | |||||
| 7 | 318534300 | Spring,guide Pin ,(6) |
|
$ 7.09 | |||||
| 8 | 318574500 | Spring,radiant Heater ,(4) |
|
- | |||||
| 9 | 318576500 | Deflector |
|
- | |||||
| 10 | 318330405 | Panel,coil Support ,145mm |
|
$ 59.41 | |||||
| 11 | 318534001 | Deflector,outer |
|
$ 121.38 | |||||
| 12 | 318577900 | Shield,emi |
|
- | |||||
| 16 | 318079242 | Main Top Assembly,glass ,black/stainless,w/trim & Frame |
|
$ 543.32 | |||||
| 20 | 318121902 | Bracket,retainer |
|
$ 47.03 | |||||
| 46 | 318225451 | Box,burner |
|
- | |||||
| 51 | 318389600 | Bracket,conduit Mtg. |
|
$ 12.76 | |||||
| 58 | 318330537 | Insulation,service Panel |
|
- | |||||
| 171 | 318124912 | Screen,thermal |
|
- | |||||
| 10C | 318330408 | Panel,coil Support ,260mm |
|
$ 136.50 | |||||
| 2A | 318346063 | Insulation,housing ,interior |
|
- | |||||
| 2B | 318346064 | Insulation,front |
|
- | |||||
| 2C | 318346071 | Insulation,housing ,interior |
|
- | |||||
| 3A | 318568600 | Support,element |
|
- | |||||
| 9A | 318576501 | Deflector |
|
- | |||||
| F15 | 318178110 | Element,surface ,6`` ,1200w ,(2) ,radiant (Replaces: 318198830) |
|
Immediately | $ 122.86 | ||||
| F15A | 318258203 | Element,bridge ,1800/2600 |
|
Immediately | $ 371.39 | ||||
| F15B | 318329200 | Element,induction Coil ,145mm ,rear |
|
- | |||||
| F15C | 318329203 | Element,induction Coil ,260mm ,rh Front |
|
- | |||||
| FNI | 318402414 | Harness,wiring ,main |
|
- | |||||
| FNI | 318394491 | Box & Wires Assy |
|
- | |||||
| NI | 5304462994 | Screw,8-32 X 5/16 |
|
- | |||||
| NI | 5303300265 | Screw,8-18 X 1/2 ,(4) |
|
$ 15.17 | |||||
| NI | 5304424462 | Foam Tape,1/2`` X 14`` |
|
Immediately | $ 69.77 | ||||
| NI | 316459400 | Pad,cleaning |
|
- | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 | |||||
| NI | 318163602 | Cleaner,stainless Steel |
|
$ 26.51 | |||||
| NI | 08016432 | Screw,truss Head,8-18 X 0.375 |
|
- | |||||
| NI | 5303325170 | Nut,keps ,8-32 ,(2) |
|
- |
