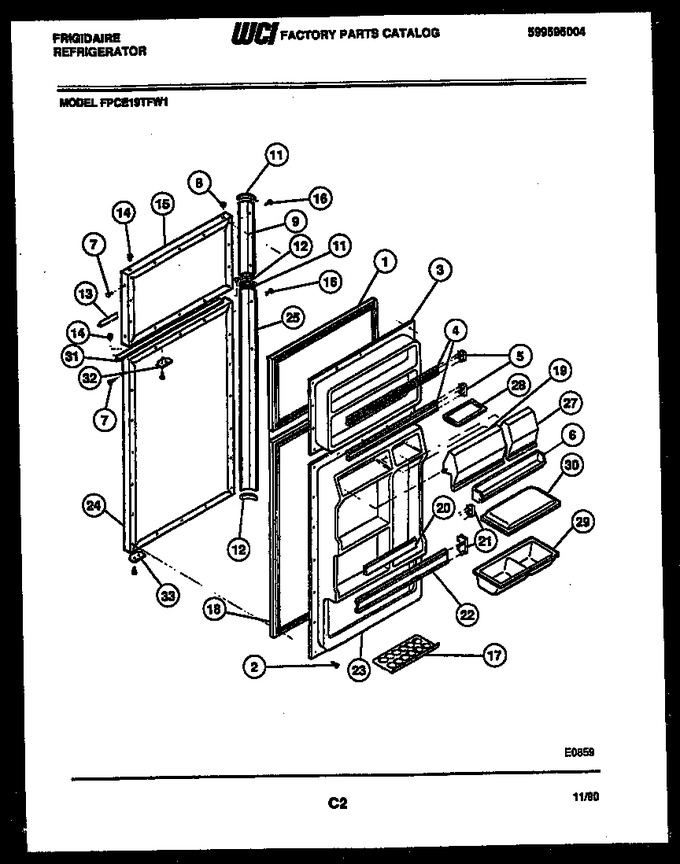

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket, Freezer |
|
- | |||||
| 2 | 08002748 | Screw |
|
- | |||||
| 3 | 3018971 | Panel-inner Freezer |
|
- | |||||
| 4 | 3018972 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323481 | Support-lh (2) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303200412 | Dish, Microwave Single (2) |
|
- | |||||
| 7 | 5308000178 | Button Plug-coffee |
|
- | |||||
| 8 | 5303001657 | Button Plug-coffee |
|
- | |||||
| 9 | 5303017190 | Handle-complete Freezer |
|
- | |||||
| 11 | 5308010239 | End Cap (2) |
|
- | |||||
| 12 | 5303010238 | End Cap (2) |
|
- | |||||
| 13 | 3201581 | Nameplate |
|
- | |||||
| 14 | 5308012007 | Bearing (8) |
|
- | |||||
| 15 | 5308010022 | Panel, Freezer (coffee) |
|
- | |||||
| 16 | 5308013645 | Screw (6) |
|
- | |||||
| 17 | 5303018635 | Tray, Egg |
|
- | |||||
| 18 | 5308017487 | Gasket, Refrigerator |
|
- | |||||
| 19 | 3018868 | Door-dairy Lh |
|
- | |||||
| 20 | 3019018 | Rack-refrigerator |
|
- | |||||
| 21 | 5303203263 | Support Lh (2) |
|
- | |||||
| 22 | 3018975 | Rack-door |
|
- | |||||
| 23 | 3200310 | Panel-inner Refr |
|
- | |||||
| 24 | 5308010020 | Panel, Refr (coffee) |
|
- | |||||
| 25 | 5308017497 | Handle-complete Refr |
|
- | |||||
| 27 | 3018974 | Door-dairy Rh |
|
- | |||||
| 28 | 5303018743 | Dish, Butter |
|
- | |||||
| 29 | 5303200413 | Dish, Microwave Double |
|
- | |||||
| 30 | 5303200414 | Lid, Microwave Dish (3) |
|
- | |||||
| 31 | 3200570 | Trim-door Top |
|
- | |||||
| 32 | 5308000255 | Door Stop, Freezer (1) |
|
$ 42.20 | |||||
| 33 | 5303212491 | Door Stop-refrigerator (1) |
|
- | |||||
| 21A | 5303325990 | Support Rh (2) (non-illustrated) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22A | 5303325990 | Support-door Rack Rh (non-illustrated) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22B | 5303203263 | Support-door Rack Lh (non-illustrated) |
|
- | |||||
| 23A | 5303007739 | Insulation-bulk (non-illustrated) |
|
- | |||||
| 31A | 3018977 | Snugger Finger (non-illustrated) |
|
- | |||||
| 5A | 5303323480 | Support-rh (2) (non-illustrated) (Replaces: 5303017378) |
|
$ 14.18 |
