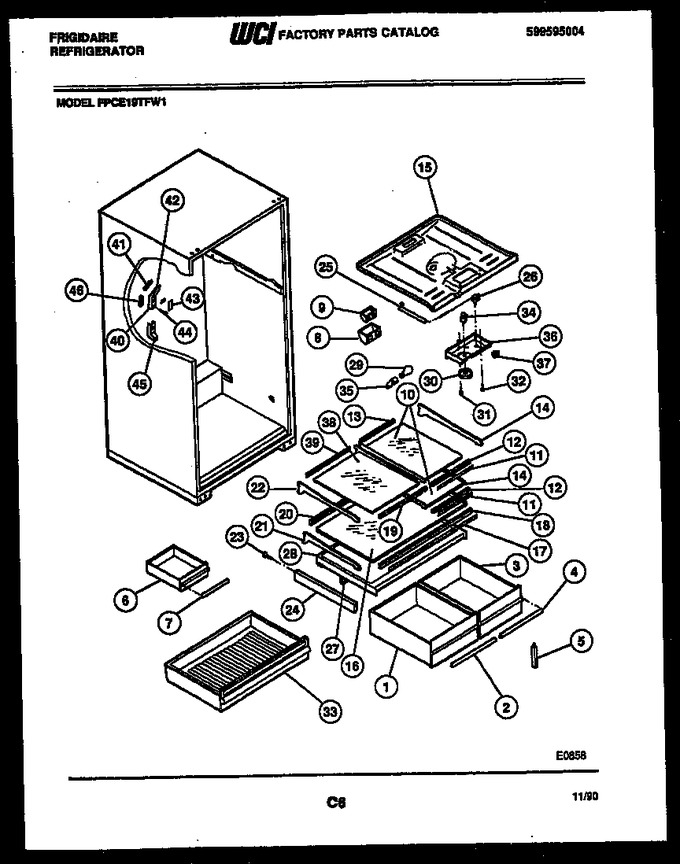

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018873		Pan-storage Lh		Appelez-nous	-
2	3017423		Trim, Pan, Lh		Appelez-nous	-
3	3200571		Pan-storage Rh		Appelez-nous	-
4	3017422		Trim, Pan, Rh		Appelez-nous	-
5	5303206507		Adj Crisper Cover Support		Appelez-nous	-
6	3200572		Pan, Meat		Appelez-nous	-
7	3018986		Trim, Meat Pan		Appelez-nous	-
8	5303001448		Cover-deflector		Appelez-nous	-
9	5308014667		Air Deflector & Seal		Appelez-nous	-
10	3200315		Glass-shelf (2)		Appelez-nous	-
11	3018989		Trim-shelf (2)		Appelez-nous	-
12	3200316		Retainer (2)		Appelez-nous	-
13	3200317		Retainer-rear (2)		Appelez-nous	-
14	3200318		Frame-1/2 Shelf (2)		Appelez-nous	-
15	3018993		Top - Refrigerator		Appelez-nous	-
16	3200573		Glass-shelf		Appelez-nous	-
17	3200575		Trim		Appelez-nous	-
18	3200321		Retainer		Appelez-nous	-
19	3200316		Retainer-meat Shelf		Appelez-nous	-
20	3200576		Retainer-rear		Appelez-nous	-
21	3200577		Frame-full Shelf		Appelez-nous	-
22	3200328		Frame-meat Shelf		Appelez-nous	-
23	08014528		Screw (6)				$ 4.31
24	5303210016		Hanger Lh				$ 134.09
25	3018891		Housing, Cap Tube		Appelez-nous	-
26	5303007400		Timer		Appelez-nous	-
27	5303200329		Gasket, Cover		Appelez-nous	-
28	5303018983		Cover, Crisper		Appelez-nous	-
29	5303001179		Bulb, Light		Appelez-nous	-
30	3018893		Knob, Cold Control		Appelez-nous	-
31	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
32	5303001260		Screw				$ 6.73
33	3200584		Tray, Deli		Appelez-nous	-
34	5303018894		Control, Cold		Appelez-nous	-
35	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
36	3018895		Box, Control		Appelez-nous	-
37	5303018896		Switch, Rocker		Appelez-nous	-
38	3200330		Glass-meat Shelf		Appelez-nous	-
39	3200331		Retainer-rear		Appelez-nous	-
40	5303001445		Damper, Control		Appelez-nous	-
41	5308009765		Insulation		Appelez-nous	-
42	08009767		Duct, Upper		Appelez-nous	-
43	3200588		Label, Duct		Appelez-nous	-
44	5308016568		Screw		Appelez-nous	-
45	5303001443		Duct, Lower		Appelez-nous	-
46	5303007739		Insulation		Appelez-nous	-
*39186	5303200590		Extension-deflector		Appelez-nous	-
*39186	3200589		Divider-deli Tray		Appelez-nous	-
*39186	3200653		Gasket-deli Tray-rear		Appelez-nous	-
19A	3200322		Trim, Meat Shelf		Appelez-nous	-
24A	5303210017		Hanger Rh (non-illustrated)				$ 107.89
28A	3200579		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
28B	3200389		Glass-shelf (non-illustrated)		Appelez-nous	-
28C	5303200580		Control - Humidity (non-illustrated)		Appelez-nous	-
33A	3200585		Trim-deli Tray (non-illustrated)		Appelez-nous	-
33B	5303210016		Hanger - Lh (non-illustrated)				$ 134.09
33C	5303210017		Hanger Rh (non-illustrated)				$ 107.89
9A	5303001449		Seal-air Deflector				$ 2.12

    View Diagram in Separate Window       Print Part List
