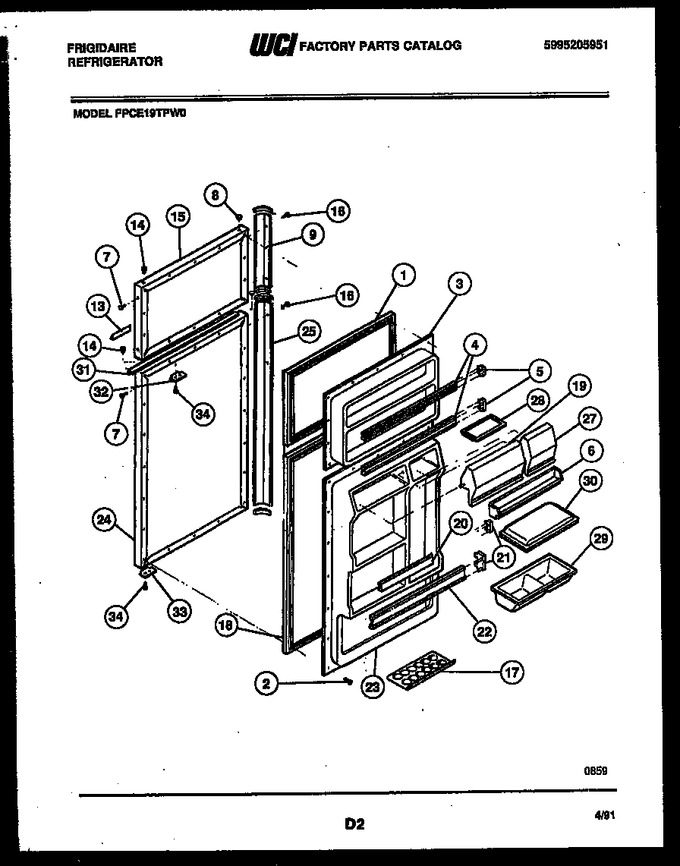

02 - Door Parts
03 - Cabinet Parts
04 - Shelves And Supports
05 - Shelves And Supports
06 - System And Automatic Defrost Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303017189 | Gasket, Freezer |
|
- | |||||
| 2 | 5308002748 | Screw |
|
- | |||||
| 3 | 3018971 | Panel-inner Freezer |
|
- | |||||
| 4 | 3018972 | Rack, Freezer (2) |
|
- | |||||
| 5 | 5303323481 | Support-lh (2) (Replaces: 5303017381) |
|
Immediately | $ 14.18 | ||||
| 6 | 5303272525 | Dish-microwave Single (2) |
|
- | |||||
| 7 | 240494001 | Button Plug-white (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 8 | 5308000134 | Button Plug-white |
|
$ 5.62 | |||||
| 9 | 5303272664 | Handle-complete-freezer-white |
|
- | |||||
| 13 | 3201581 | Nameplate |
|
- | |||||
| 14 | 5308012007 | Bearing (8) |
|
- | |||||
| 15 | 5303916052 | Panel-freezer White |
|
- | |||||
| 16 | 5303272566 | Screw Handle White (6) |
|
- | |||||
| 17 | 5303018635 | Tray, Egg |
|
- | |||||
| 18 | 5308017487 | Gasket, Refrigerator |
|
- | |||||
| 19 | 3018868 | Door-dairy Lh |
|
- | |||||
| 20 | 3019018 | Rack-refrigerator |
|
- | |||||
| 21 | 5303203263 | Support Lh (2) |
|
- | |||||
| 22 | 3018975 | Rack-door |
|
- | |||||
| 23 | 3200310 | Panel-inner Refr |
|
- | |||||
| 24 | 5303916621 | Panel-refr-white |
|
- | |||||
| 25 | 5303272661 | Handle-complete Refrigerator-white |
|
- | |||||
| 27 | 3018974 | Door-dairy Rh |
|
- | |||||
| 28 | 5303018743 | Dish, Butter |
|
- | |||||
| 29 | 5303200413 | Dish, Microwave Double |
|
- | |||||
| 30 | 5303200414 | Lid, Microwave Dish (3) |
|
- | |||||
| 31 | 3200570 | Trim-door Top |
|
- | |||||
| 32 | 5308000255 | Door Stop-freezer |
|
$ 42.20 | |||||
| 33 | 5303212491 | Door Stop, Refrigerator |
|
- | |||||
| 34 | 5308011745 | Screw |
|
$ 10.38 | |||||
| 21A | 5303325990 | Support Rh (2) (non-illustrated) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22A | 5303325990 | Support-door Rack Rh (non-illustrated) (Replaces: 5303203262) |
|
Immediately | $ 17.01 | ||||
| 22B | 5303203263 | Support-door Rack Lh (non-illustrated) |
|
- | |||||
| 23A | 5303007739 | Insulation-bulk (non-illustrated) |
|
- | |||||
| 31A | 3205117 | Snugger-finger (non-illustrated) |
|
- | |||||
| 5A | 5303323480 | Support-rh (2) (non-illustrated) (Replaces: 5303017378) |
|
$ 14.18 |
