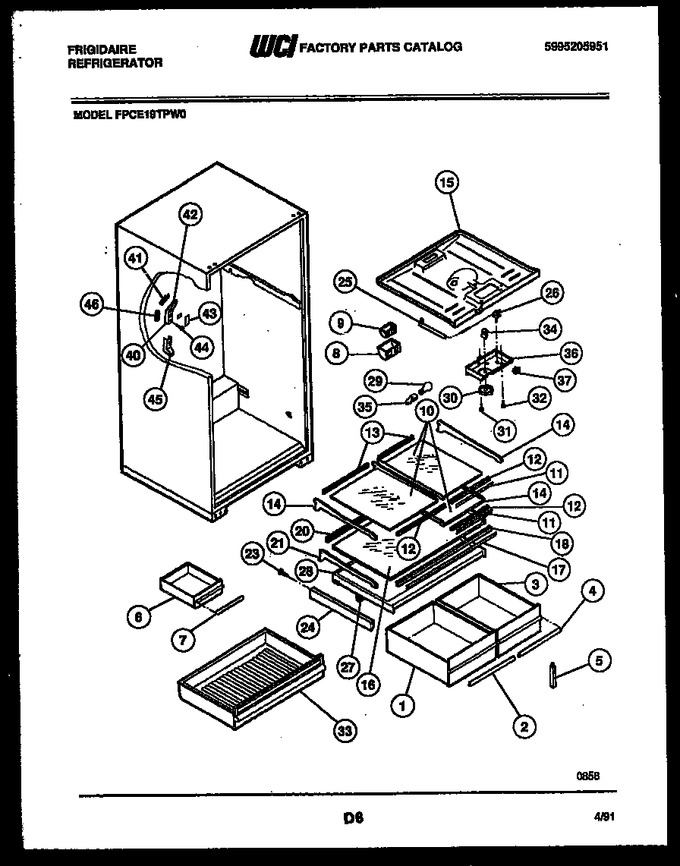

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3018873		Pan-storage Lh		Appelez-nous	-
2	5303272523		Trim-pan Lh		Appelez-nous	-
3	3200571		Pan-storage Rh		Appelez-nous	-
4	5303272529		Trim-pan Rh		Appelez-nous	-
5	5303206507		Adj Crisper Cover Support		Appelez-nous	-
6	3200572		Pan, Meat		Appelez-nous	-
7	5303272530		Trim, Meat Pan		Appelez-nous	-
8	5303001448		Cover-deflector		Appelez-nous	-
9	5308014667		Air Deflector & Seal		Appelez-nous	-
10	5303211967		Glass-shelf Split (3)		Appelez-nous	-
11	5303272543		Trim-shelf (3)		Appelez-nous	-
12	5303209263		Retainer-front (3)		Appelez-nous	-
13	5303211828		Retainer-rear (3)		Appelez-nous	-
14	530329869		Frame-split Shelf (3)		Appelez-nous	-
15	3018993		Top - Refrigerator		Appelez-nous	-
16	5303211964		Glass, Shelf		Appelez-nous	-
17	5303272550		Trim		Appelez-nous	-
18	5303211965		Retainer-gasket Front		Appelez-nous	-
20	5303211966		Retainer-rear-gasket		Appelez-nous	-
21	5303210022		Frame-full Shelf		Appelez-nous	-
23	08014528		Screw (6)				$ 4.31
24	5303210016		Hanger Lh-meat Pan & Deli Tray				$ 134.09
25	3018891		Housing, Cap Tube		Appelez-nous	-
26	215846602		Timer   (Replaces: 5300187484)			Immediately	$ 28.20
27	5303200329		Gasket, Cover		Appelez-nous	-
28	5303018983		Cover, Crisper		Appelez-nous	-
29	5303001179		Bulb, Light		Appelez-nous	-
30	3018893		Knob, Cold Control		Appelez-nous	-
31	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
32	5303001260		Screw				$ 6.73
33	3200584		Tray, Deli		Appelez-nous	-
34	5303018894		Control, Cold		Appelez-nous	-
35	218906802		Socket, Light   (Replaces: 5308000815)				$ 17.72
36	3018895		Box, Control		Appelez-nous	-
37	5303018896		Switch, Rocker		Appelez-nous	-
40	5303001445		Damper, Control		Appelez-nous	-
41	5308009765		Insulation		Appelez-nous	-
42	08009767		Duct, Upper		Appelez-nous	-
43	3200588		Label, Duct		Appelez-nous	-
44	5308016568		Screw		Appelez-nous	-
45	5303001443		Duct, Lower		Appelez-nous	-
46	5308009764		Insulation		Appelez-nous	-
*45841	5303200590		Extension-deflector		Appelez-nous	-
*45841	3200589		Divider-deli Tray		Appelez-nous	-
10A	5303211828		Trim-snap On Shelf Rear (3) (non-illustrated)		Appelez-nous	-
10B	5303211351		Lock-trim-rear (3) (non-illustrated)		Appelez-nous	-
15A	5303001380		Screw		Appelez-nous	-
21A	5303211962		Trim-shelf Rear (non-illustrated)		Appelez-nous	-
24A	5303210017		Hanger Rh-meat Pan & Deli Tray (non-illustrated)				$ 107.89
28A	3200579		Trim-crisper Cover (non-illustrated)		Appelez-nous	-
28B	5303211968		Glass - Shelf (non-illustrated)		Appelez-nous	-
28C	5303200580		Control - Humidity (non-illustrated)		Appelez-nous	-
33A	5303272557		Trim-deli Tray (non-illustrated)		Appelez-nous	-
33B	5303210016		Hanger - Lh (non-illustrated)				$ 134.09
33C	5303210017		Hanger Rh (non-illustrated)				$ 107.89
9A	5303001449		Seal-air Deflector (non-illustrated)				$ 2.12
