Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303206633 Gasket-freezer Appelez-nous -
2 5308002748 Screw Appelez-nous -
3 5303206631 Panel-inner Freezer Appelez-nous -
4 5303206632 Rack-freezer (2) Appelez-nous -
5 5303323481 Support Lh (2)   (Replaces: 5303017380) In-Stock Immediately $ 14.18

6 5303206664 Dish-microwave Single (2) Appelez-nous -
7 240494001 Button Plug-white   (Replaces: 5308000090) In-Stock Immediately $ 18.20

8 5308000134 Button Plug-white Special Order $ 5.62

9 5303206635 Handle-complete-freezer Appelez-nous -
13 5303206636 Nameplate Appelez-nous -
14 5308012007 Bearing (8) Appelez-nous -
15 5303916626 Panel-freezer-white Appelez-nous -
16 5308011745 Screw Special Order $ 10.38

17 5303206663 Tray-egg Appelez-nous -
18 5303206641 Gasket-refrigerator Appelez-nous -
19 5303206638 Door-dairy Lh Appelez-nous -
20 5303206646 Rack-refrigerator Appelez-nous -
21 5303325991 Support Lh (2)   (Replaces: 5303206645) Special Order $ 17.01

22 215516220 Rack-door   (Replaces: 5303206643) Special Order $ 54.58

23 5303206639 Panel-inner-refr Appelez-nous -
24 5303916340 Panel-refr-white Appelez-nous -
25 5303206642 Handle-complete-refr Appelez-nous -
27 5303206637 Door-dairy Rh Appelez-nous -
28 5303018743 Dish, Butter Appelez-nous -
29 5303206665 Dish-microwave Double Appelez-nous -
30 5303206666 Lid-microwave Dish (3) Appelez-nous -
31 5308009857 Trim, Door Top Appelez-nous -
*93060 5303272868 Snugger-finger Appelez-nous -
*93060 5308000255 Stop-door (2) Special Order $ 42.20

*93067 5303206667 Rack-wine Appelez-nous -
21A 5303325990 Support Rh (2) (non-illustrated)   (Replaces: 5303206644) In-Stock Immediately $ 17.01

23A 5303007739 Insulation-bulk (non-illustrated) Appelez-nous -
5A 5303323480 Support Rh (2) (non-illustrated)   (Replaces: 5303017377) Special Order $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

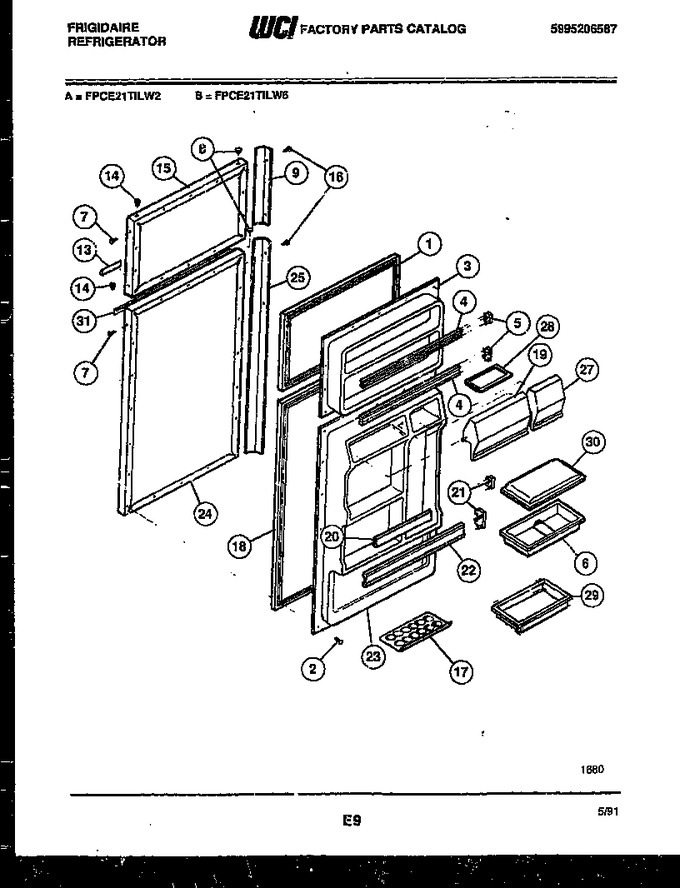

Diagram for FPCE21TILW2
