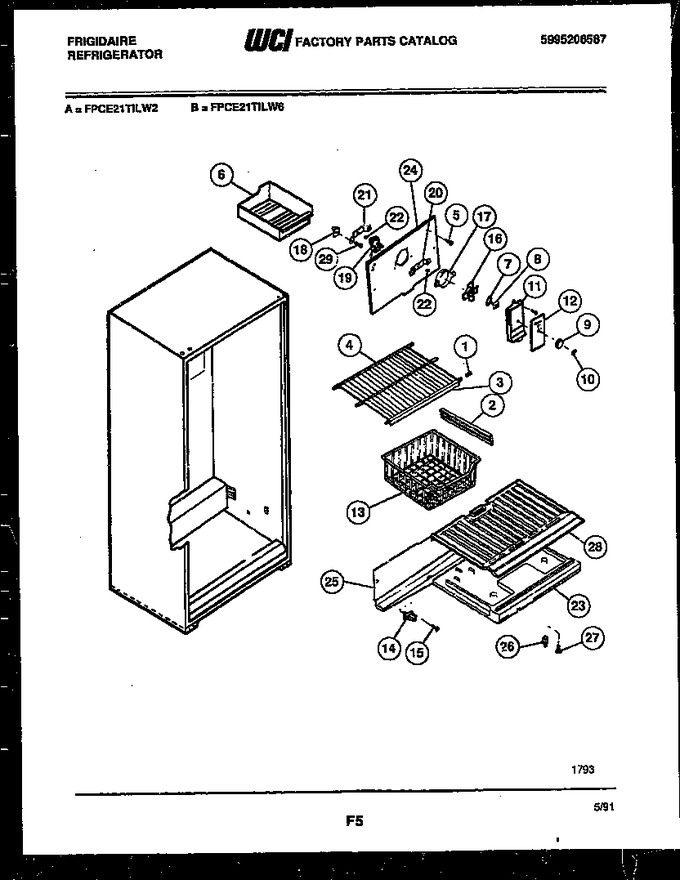

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3201150 | Cap-protector |
|
$ 4.57 | |||||
| 2 | 5303206521 | Hanger-basket Rh |
|
- | |||||
| 3 | 530320647 | Trim |
|
- | |||||
| 4 | 5303206648 | Shelf |
|
- | |||||
| 5 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 6 | 5303206660 | Container-ice |
|
- | |||||
| 7 | 5303001331 | Damper |
|
$ 31.71 | |||||
| 8 | 5303001028 | Nut, Push |
|
- | |||||
| 9 | 5303206677 | Knob-damper |
|
- | |||||
| 10 | 08009823 | Label, Damper |
|
- | |||||
| 11 | 3205541 | Cover-fan |
|
- | |||||
| 12 | 5303207206 | Label-fan Cover |
|
- | |||||
| 13 | 5303206649 | Basket-sliding |
|
- | |||||
| 14 | 5308000056 | Spout Drain |
|
$ 11.66 | |||||
| 15 | 5308013647 | Pin-push (2) |
|
- | |||||
| 16 | 5308000010 | Fan |
|
Immediately | $ 49.03 | ||||
| 17 | 5308000124 | Ring, Orifice |
|
$ 53.58 | |||||
| 18 | 5308000107 | Bracket-connector |
|
$ 33.23 | |||||
| 19 | 5300158289 | Motor, Fan |
|
Immediately | $ 149.94 | ||||
| 20 | 5303205118 | Bracket - Front |
|
- | |||||
| 21 | 5303205119 | Bracket, Rear |
|
- | |||||
| 22 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 23 | 5303019039 | Divider, Styrofoam |
|
- | |||||
| 24 | 5308013665 | Cover, Coil |
|
- | |||||
| 25 | 5303001470 | Trough-drain |
|
- | |||||
| 26 | 5309918806 | Switch, Light |
|
Immediately | $ 21.97 | ||||
| 27 | 5303001380 | Screw |
|
- | |||||
| 28 | 5303210641 | Bottom, Freezer |
|
- | |||||
| 29 | 5303210353 | Screw |
|
- | |||||
| *93189 | 5303208309 | Button Plug-hole |
|
$ 45.50 | |||||
| *93190 | 5303209814 | Nut-``u`` Type |
|
- | |||||
| 11A | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 23A | 3019040 | Harness-wiring (non-illustrated) |
|
- | |||||
| 2A | 5303206522 | Hanger-basket Lh |
|
- |
