02 - Freezer Door Parts


03 - Refrigerator Door Parts


04 - Refrigerator Door Parts


05 - Cabinet Parts


06 - Cabinet Parts


07 - Shelves And Supports


08 - Shelves And Supports


09 - Refrigerator Control Assembly, Damp


10 - System And Automatic Defrost Parts


11 - System And Automatic Defrost Parts

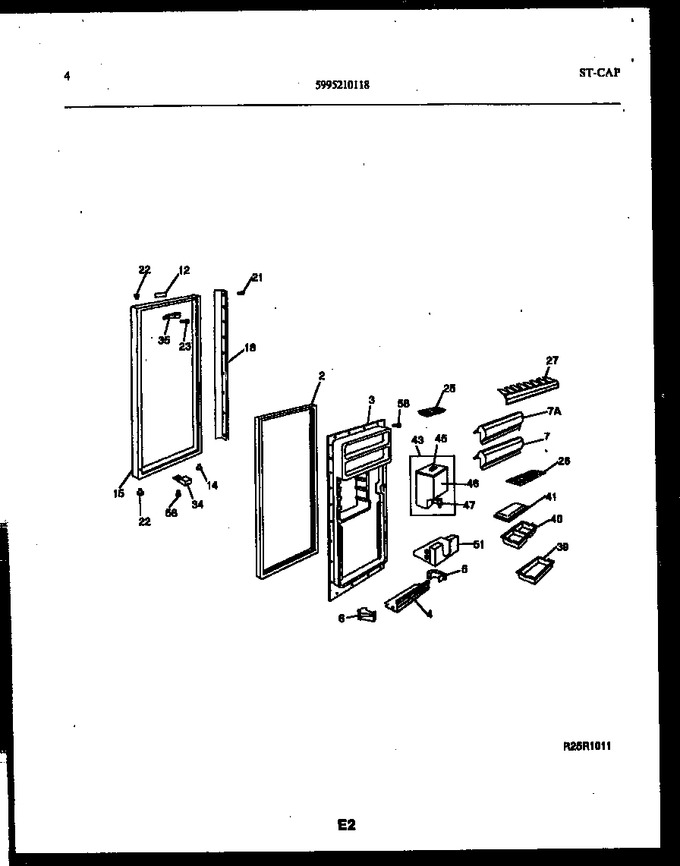

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5303200273		Gasket-refr Door, Magnetic		Appelez-nous	-
3	3200672		Panel-inner Door, Refr		Appelez-nous	-
4	5303206704		Shelf-door (3)		Appelez-nous	-
5	5303206684		Support-door Shelf, Rh		Appelez-nous	-
6	5303206685		Support-door Shelf, Lh		Appelez-nous	-
7	3200415		Door-dairy, Lower		Appelez-nous	-
12	3201581		Nameplate Assy		Appelez-nous	-
14	5315230801		Button Plug, Refr/fzr Door		Appelez-nous	-
15	5303916540		Panel-refr Door, Almond		Appelez-nous	-
18	5303273123		Handle-door, Full-length, Almond		Appelez-nous	-
21	5303272568		Screw-handle Mtg, Spcl Cr Oval Hd, 10-24(d) X 5/8, Almo		Appelez-nous	-
22	5303001022		Bearing-hinge Upper		Appelez-nous	-
22	5308012007		Bearing-hinge		Appelez-nous	-
23	5303001020		Screw-door Closer Mtg, Cr Flat Head, 8-32(d) X 1/2		Appelez-nous	-
25	5303018743		Dish, Butter		Appelez-nous	-
26	5303018932		Tray-egg		Appelez-nous	-
27	3200675		Snugger-door Rack, ``finger Type``		Appelez-nous	-
34	5308000790		Bumper, Light Switch				$ 3.86
35	5303200272		Closer-door		Appelez-nous	-
39	5303200412		Dish-microwave, Single		Appelez-nous	-
40	5303200413		Dish, Microwave Double		Appelez-nous	-
41	5303200414		Lid-microwave Dish		Appelez-nous	-
43	5303200416		Beverage Center		Appelez-nous	-
45	3205292		Lid-bvge Container		Appelez-nous	-
46	3205291		Container-bvge		Appelez-nous	-
7A	5303200442		Door-dairy, Upper		Appelez-nous	-
